Description

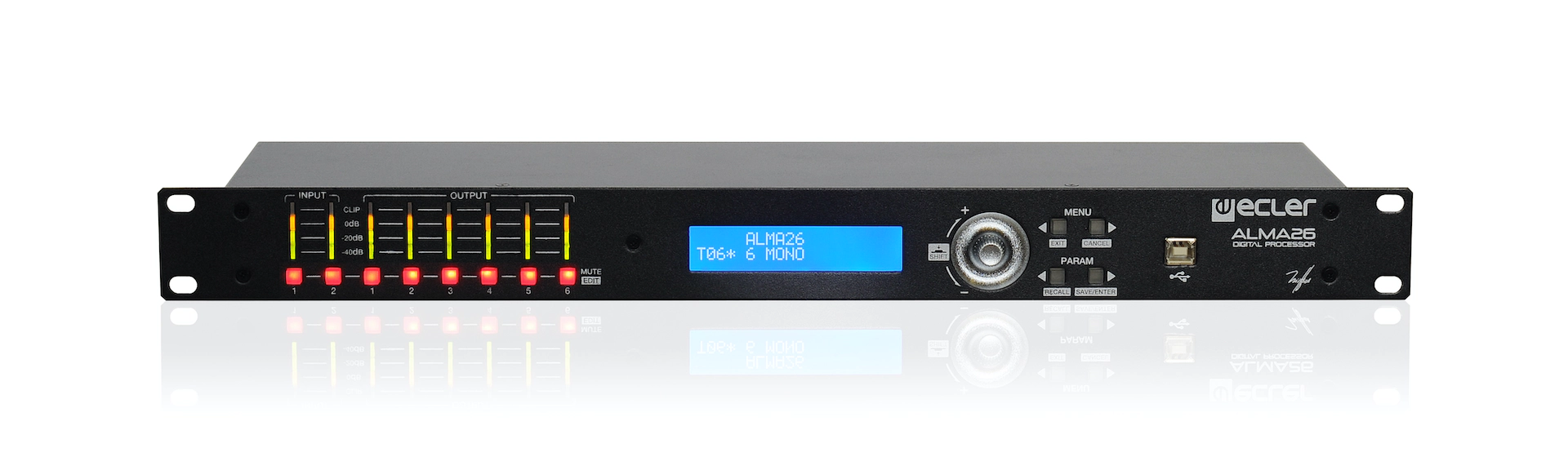

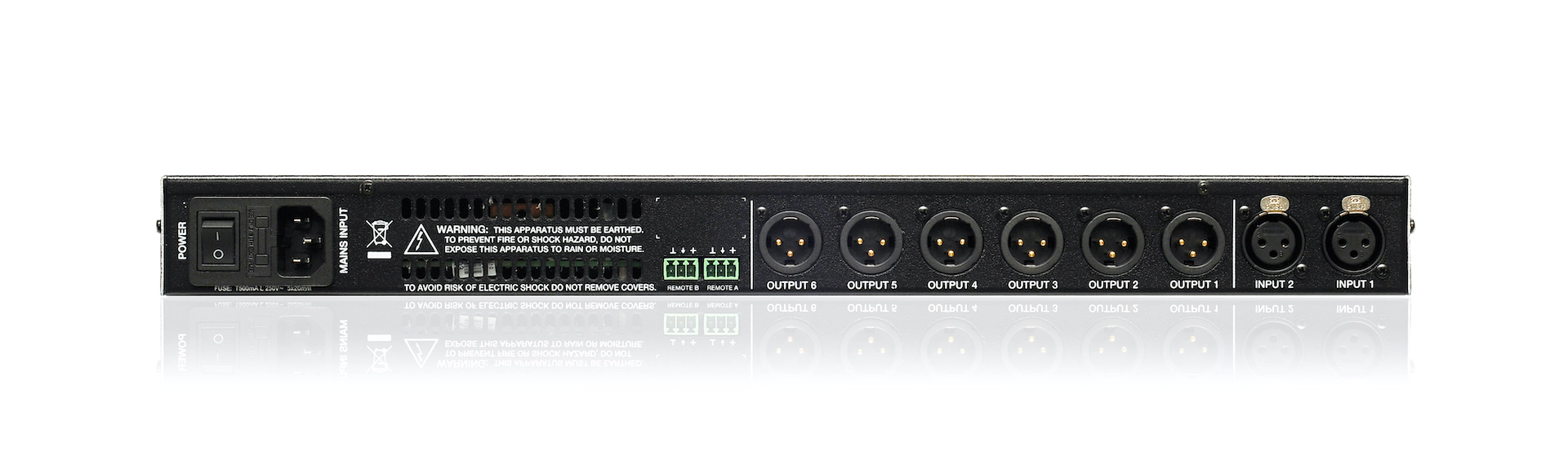

ALMA26 is a digital loudspeaker manager including 2 audio inputs and 6 audio outputs, USB interface and 2 volume remote control ports (0-10VDC).
ALMA26
2×6 | digital loudspeaker manager | USB
Digital Processors | Reference: CALMA26
- 2 audio inputs x 6 audio outputs, all balanced
- 24 bits / 48 kHz DSP processing
- 2×20 characters front panel LCD display
- 4 front panel configuration keys + digital encoder
- USB interface and EclerCOMM Manager compatibility
- DSP processing:- GAIN, MUTE, POLARITY, etc., per input or output- 4 parametric EQ filters per input / 8 parametric EQ filters per output- Butterworth, Linkwitz-Riley or Bessel Crossover filters at outputs (up to 48 dB / oct)- Inputs and outputs delay- Compressor / limiter at outputs, including make-up gain- 3 LINK groups (output channels link)
- System templates to create user configurations
- 20 user Presets
- Labels’ edition (inputs, outputs, presets and device)
- Password protection system with 2 security modes
