Description
Features:

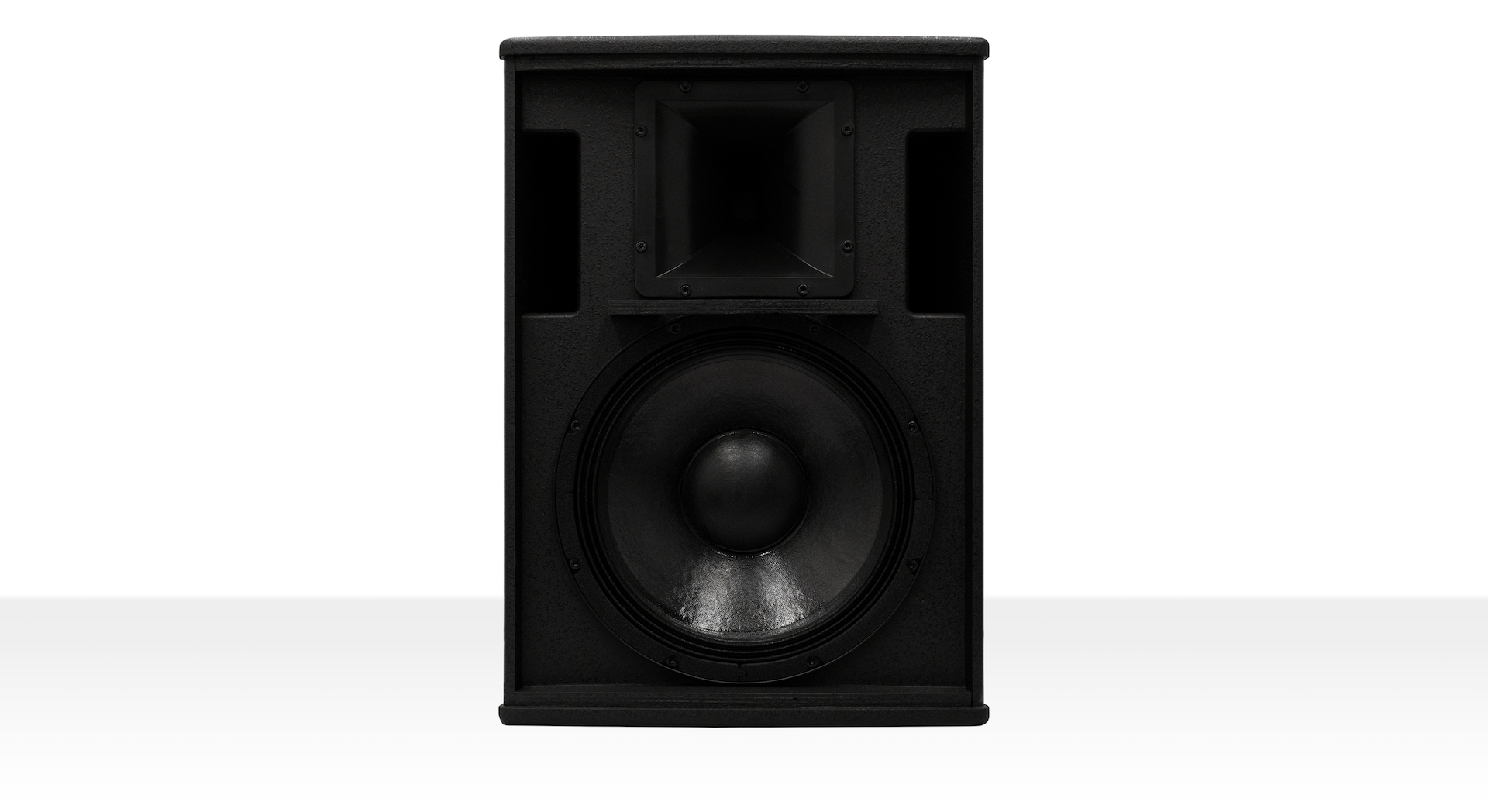

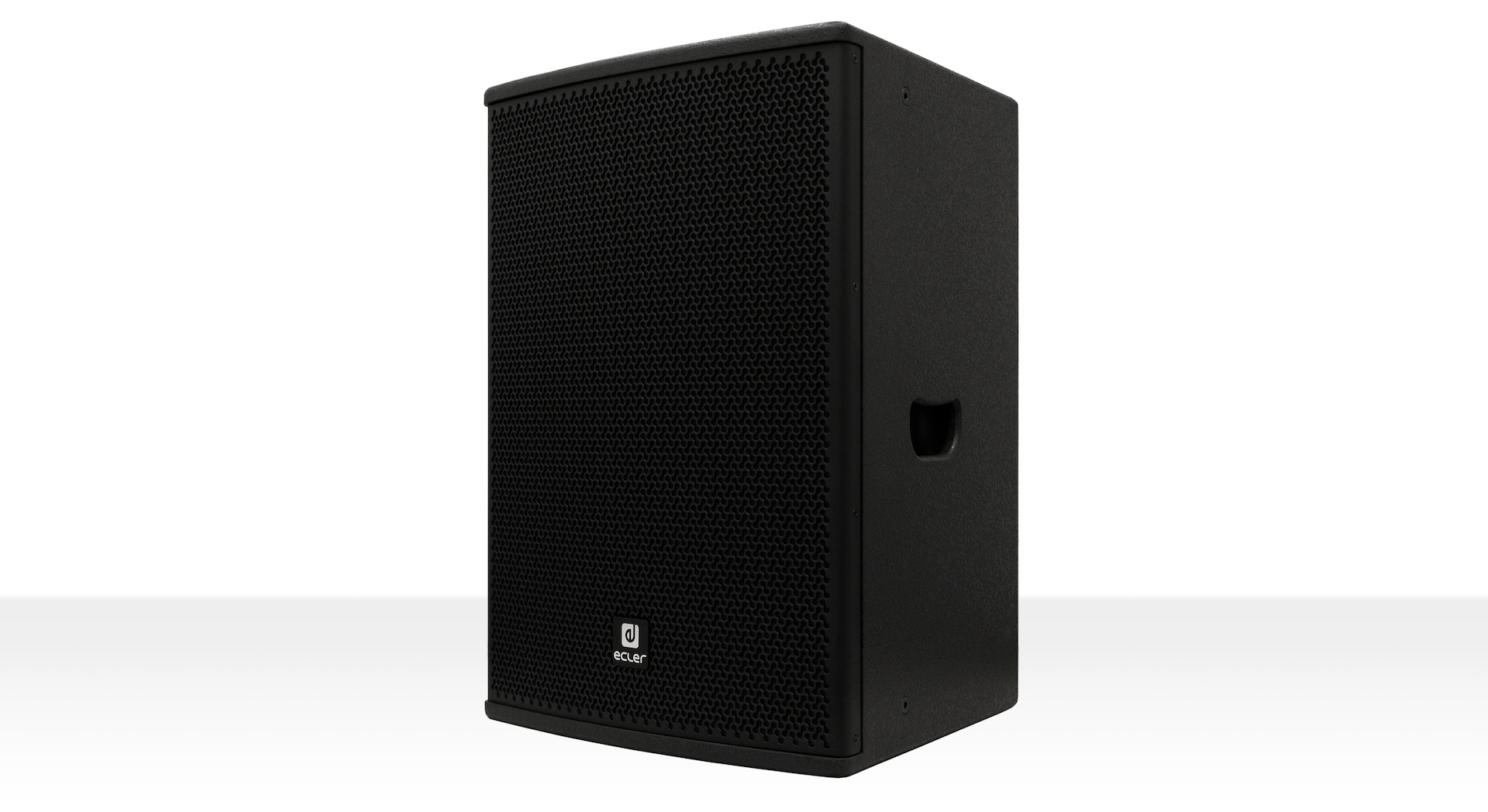

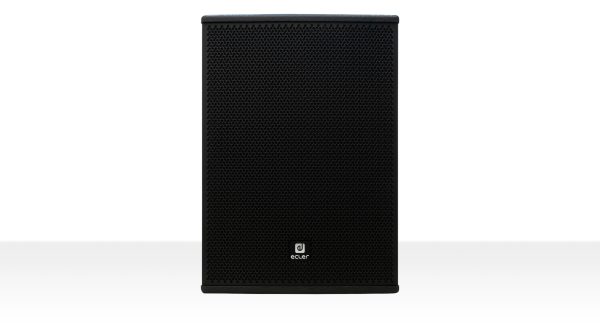

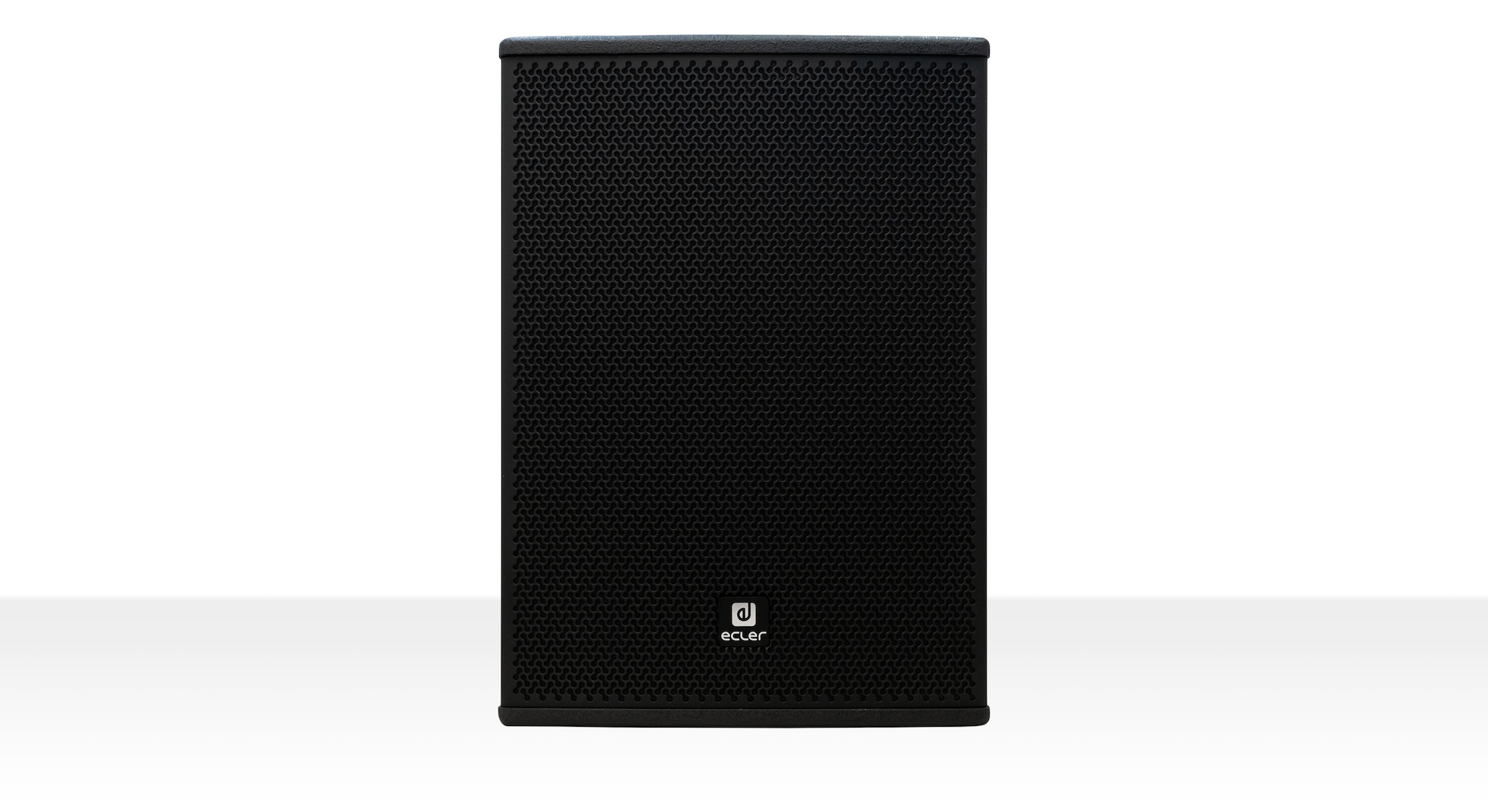

- Full range, 2-way architectural loudspeaker
- 500 WRMS @ 8Ω
- 12″ low frequency woofer
- 1,7″ high frequency compression driver (rotable)

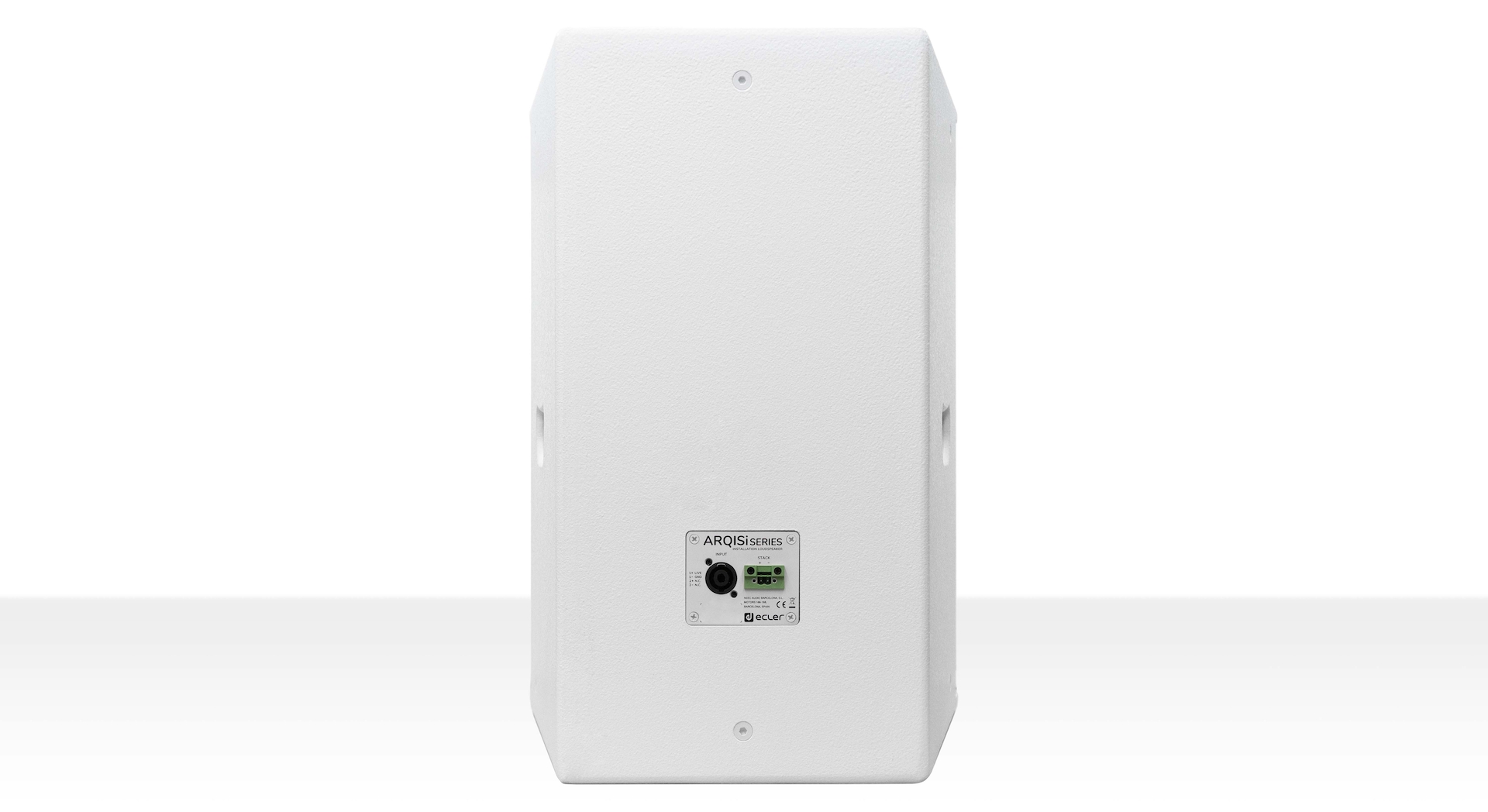

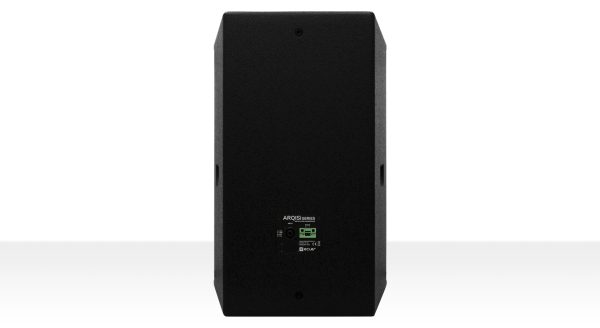

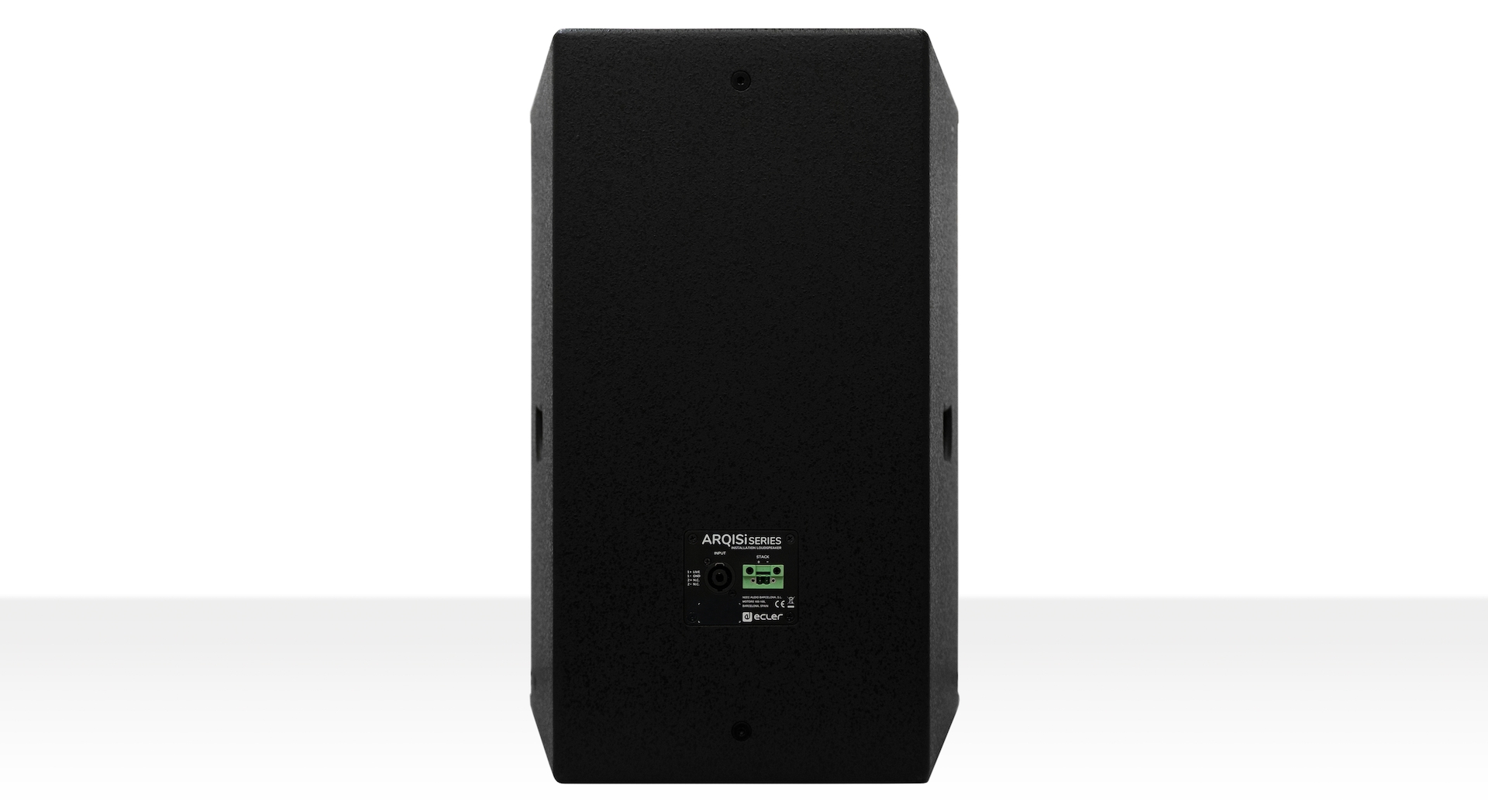

- Double INPUT/STACK connector, Euroblock + Speakon© type, with security attachment screws to avoid accidental disconnection
- 35 mm mount socket, compatible with SR12 wall bracket (not included) & TRIPO1 floor stand (not included)
- U-bracket wall-mount accessory compatible (not included)
- 12 x M8 cabinet flying points

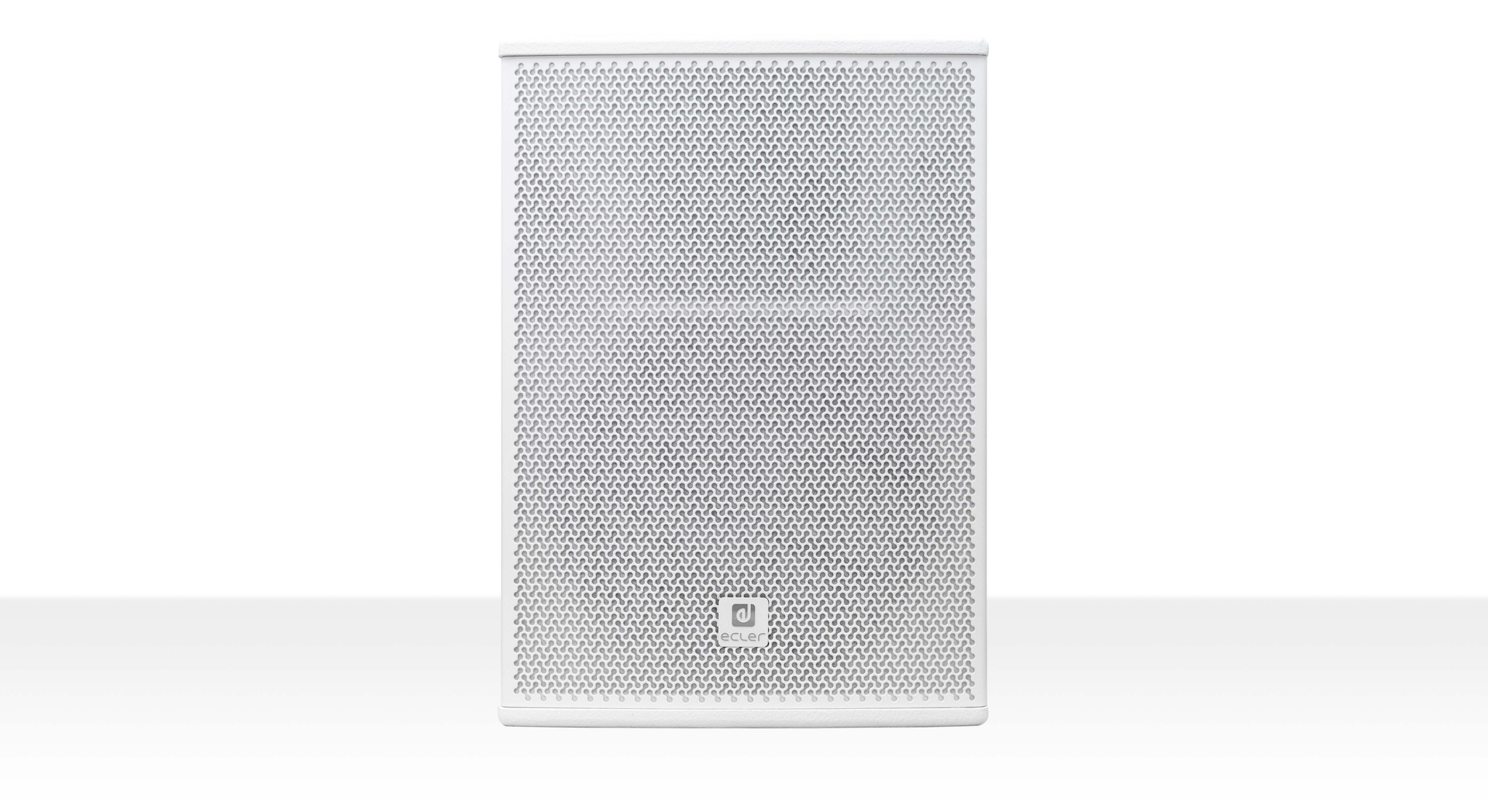

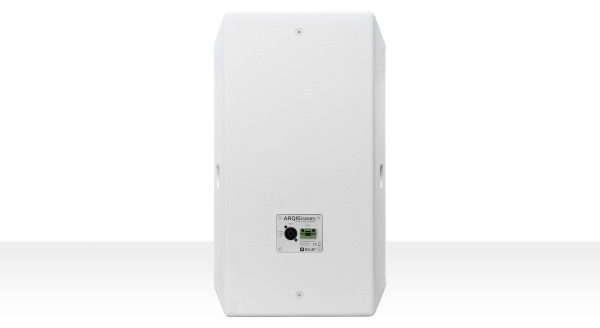

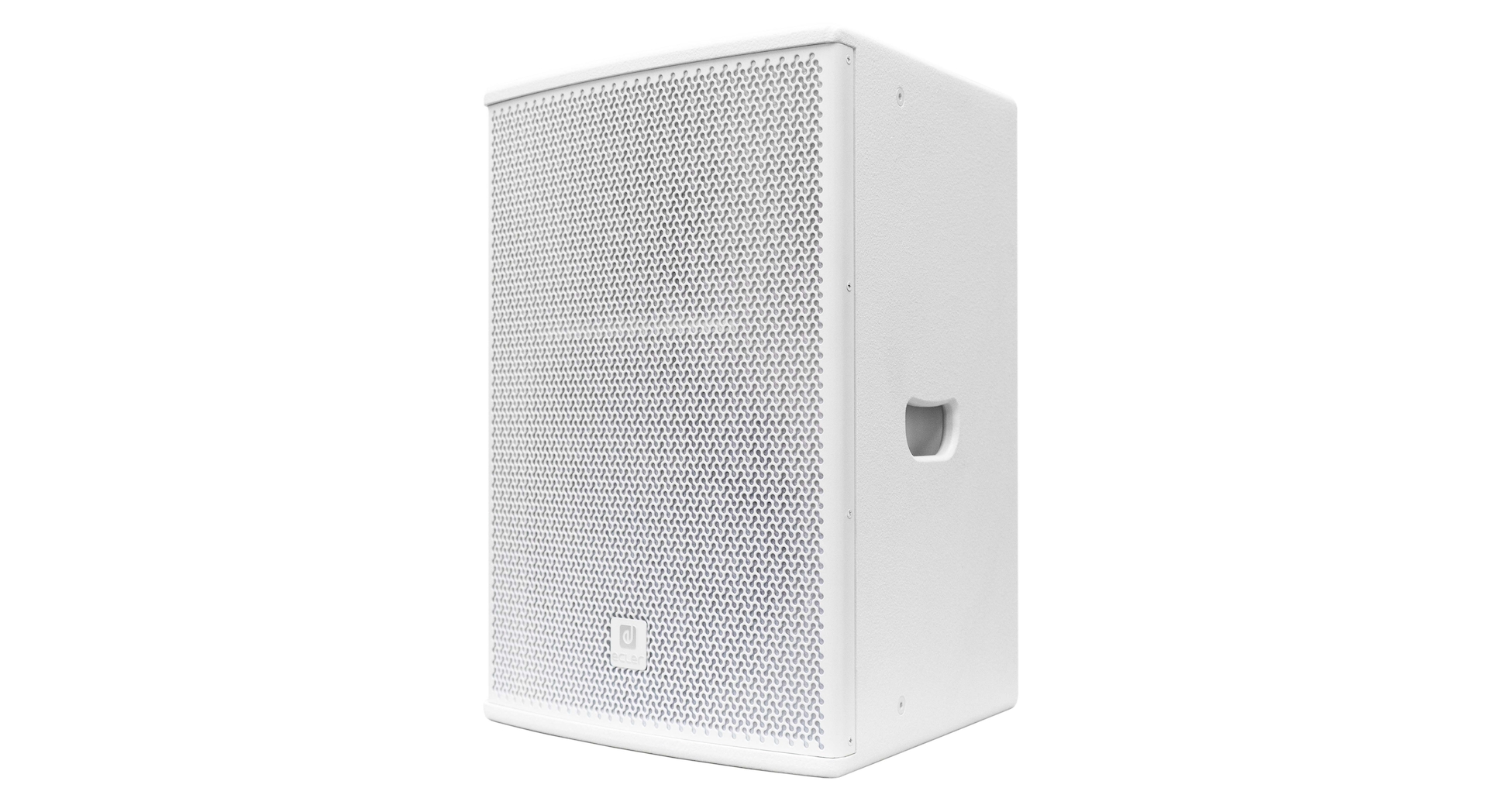

- Available in black (RAL 9005) and white (RAL 9003) colour
- EASE files available
System
Effective Freq. Range
70 Hz-19 kHz (-10dB)
Coverage angle
120°x110° (HxV)
Power handling
500 W RMS / 2000 W Peak
Sensitivity
96 dB (1W/1m)
Maximum SPL
123 dB continuous / 129 dB peak
Recommended amplifier power
1000 W RMS
Transducers
Ways
2-ways full range
Low frequency driver
12″ woofer
High frecuency driver
1,7″ rotable compression driver
Nominal impedance
8Ω
Filters
Crossover filter
2,2 kHz
Recommended High-Pass protection filter
58 Hz with minimum 12 dB / octave filter
Physical
Connection type
1 x Euroblock & 1x SPEAKON®
Installation options
Surface, wall, desktop, 35mm mount socket
Environmental
IP31
Enclosure material
MDF
Grille material
Steel
Grille fixing system
Screw fixation
Pan and tilt wall-mount
TBC
Flying points
12 x M8
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
Included accessories
4 x rubber feet, 4 x screws
Optional accessories
U-bracket wall-mount accessory compatible (ARQ112UB), 35 mm mount socket compatible with SR12 wall bracket & TRIPO1 floor stand
Finished colour
White (RAL 9003) or Black (RAL 9005)
Dimensions
565 x 403 x 380 mm / 22.24 x 15.87 x 14.96 in. (WxHxD)
Weight
23.8 kg / 52.47 lb
Pieces per box
1 piece
Shipping dimensions
650 x 470 x 470 mm / 25.59 x 18.50 x 18.50 in. (WxHxD)
Shipping weight
26.2 kg / 57.76 lb
