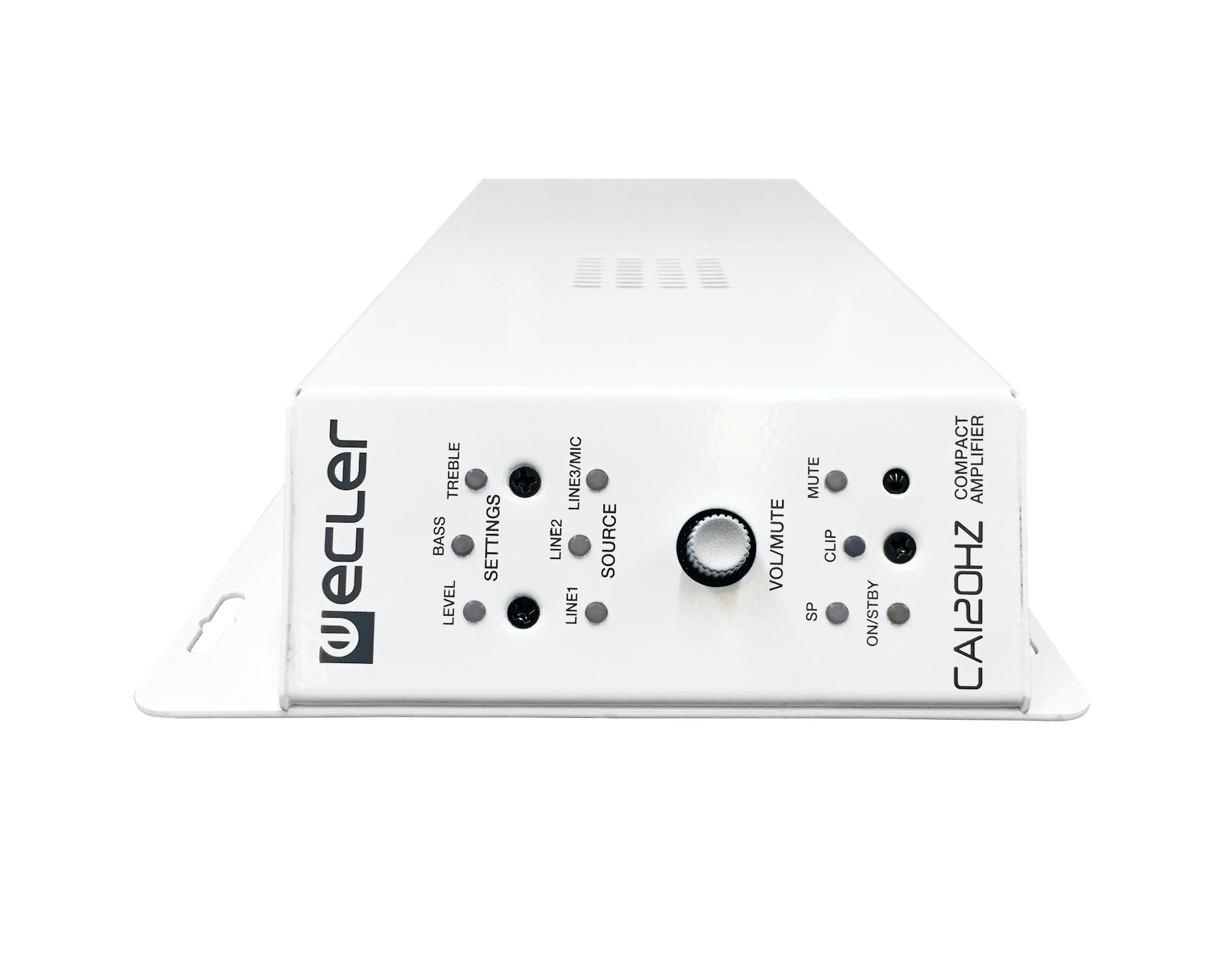

CA120HZ

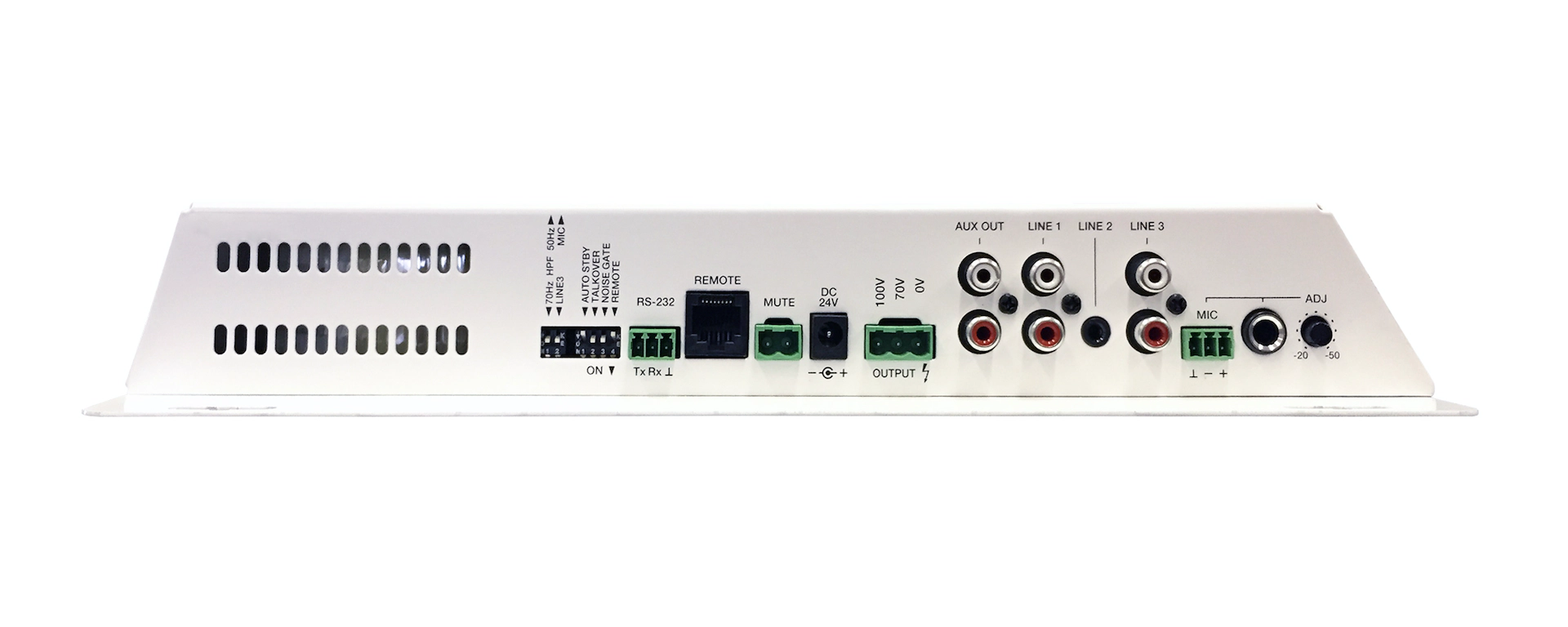

CA120HZ - Image 2

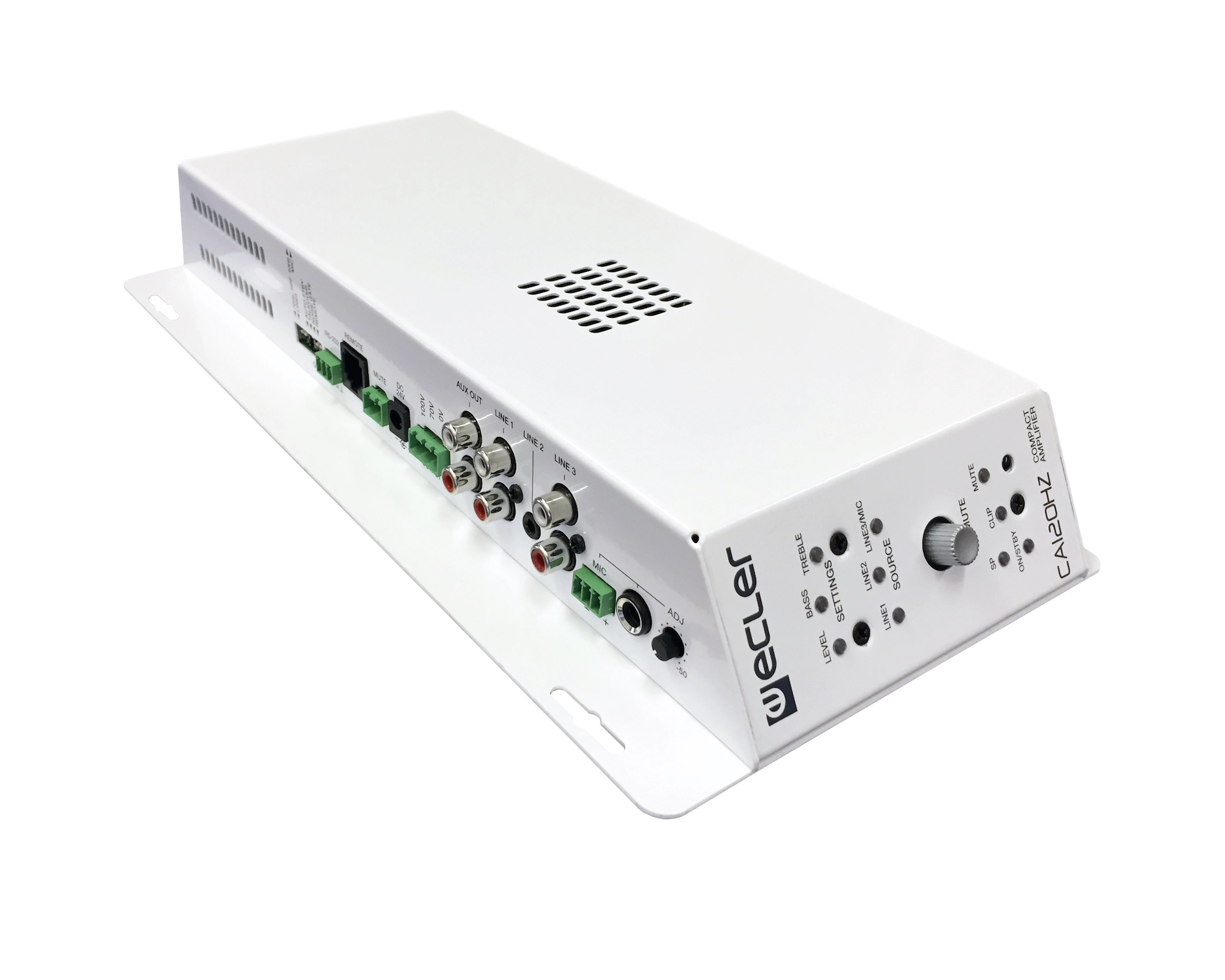

CA120HZ - Image 3
CA120HZ - Image 4

CA120HZ

120W@70/100V | mono | micro-amplifier | EQ

Compact Amplifiers | Reference: CCA120HZ,CCA120HZC

  • 1 x 96W RMS @ 70 / 100V amplifier
  • Universal external power supply
  • AUTO STANDBY function: in the absence of an audio signal the unit automatically goes into STANDBY mode, minimising power consumption
  • Lightweight, silent, high-performance amplifier (fan-free convection cooling)
  • 1 switchable balanced mic / unbalanced line input, with high quality microphone preamplifier, phantom power supply, noise gate and “talkover” function or priority over the rest of input
  • 2 stereo lines (unbalanced)
  • 2-band independent tone control (Bass, Treble) for the microphone / line 3 and line 1&2 input connection.
  • Auxiliary output for liaison with other amplifiers or external audio devices
  • Local control by digital rotary knob (“encoder”)
  • Remote control by infrared remote control
  • Remote control by WPaVOL or WPaVOL-SR (0-10 VDC) wall panel
  • RS-232 control port, compatible with EclerCOMM software (free) and control protocol CA-NET
  • MUTE port to silence the entire unit by closing external contact
Category:

Description

CA120HZ is the high impedance version of the CA120, delivering 96W @ 70/100V line level, a technology which is especially suitable for long loudspeaker wire runs and/or an amount of loudspeaker units far beyond the 2 or 4 units typically connected to a low impedance amplifier. Under its tiny size, it features an amazing set of remote control features: serial RS-232 port, IR receiver and 0-10 VDC remote port. CA120HZ is an ideal solution in those audiovisual applications which require integration with external control devices: education classrooms, meeting rooms, multimedia presentations, retail shops, etc.
