CS-C4VW & CS-C4VB - In Ceiling Speaker
CS-C4VW & CS-C4VB - In Ceiling Speaker - Image 2

CS-C4VW & CS-C4VB – In Ceiling Speaker

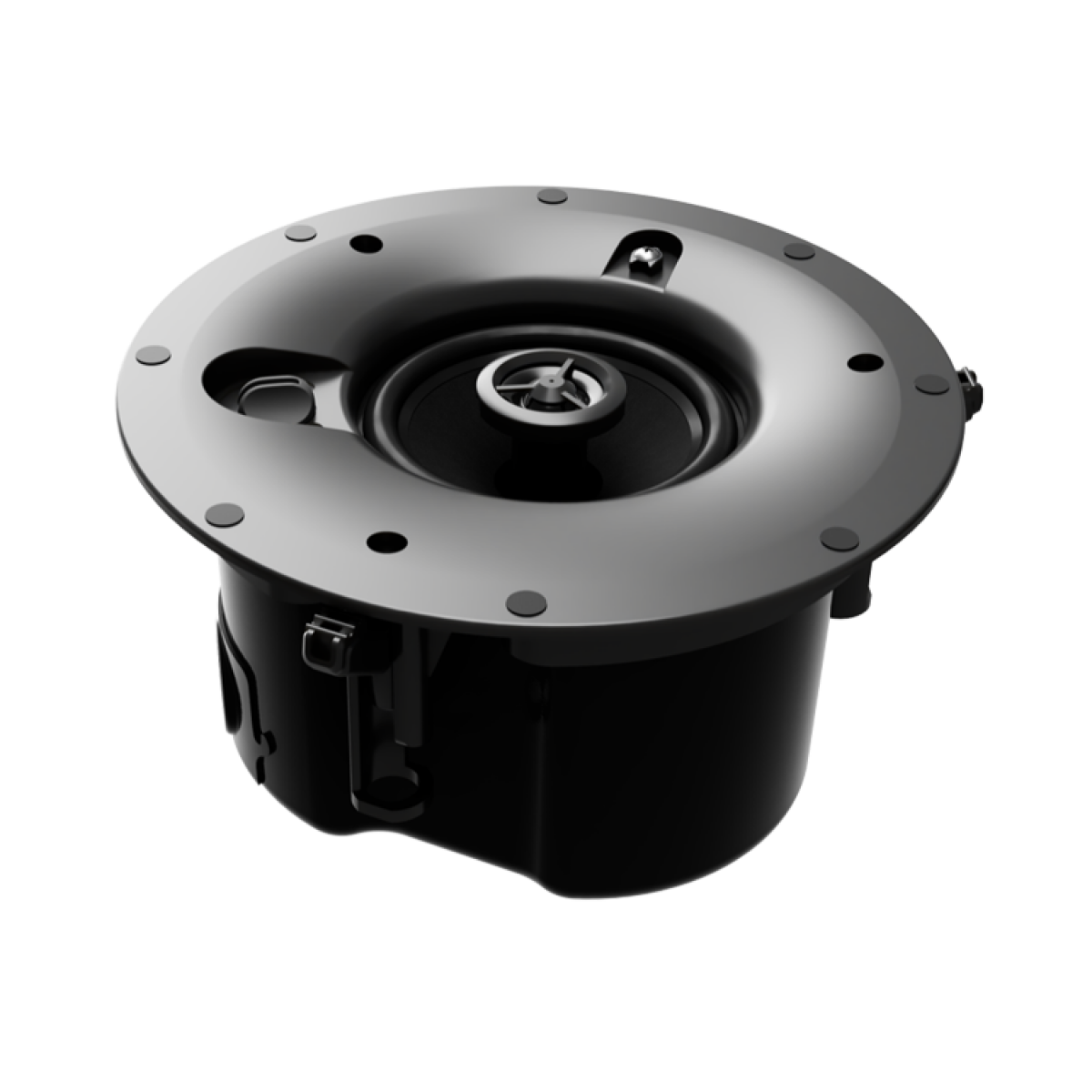

The Cloud CS-C4V is a 4” coaxial two-way in-ceiling loudspeaker featuring exceptional intelligibility and musical performance. Using premium drivers and electronics, the CS-C4V offers high sensitivity, smooth frequency response, and excellent off-axis performance. The 4.0-inch woofer incorporates a large magnet structure, a treated paper cone, and a butyl rubber surround for lasting, low-distortion performance. The 0.5” tweeter is a silk soft dome to smoothly distribute high-frequency energy. The integral 20 W transformer provides plenty of power even for high SPL applications. The 16-ohm impedance option allows for easy low-impedance daisy chaining.

The CS-C4V incorporates several innovative features that make it a truly remarkable speaker. The ZeroEdge™ grilles are magnetically attached for easy installation and feature a completely seamless transition from grille to ceiling. Round grilles are supplied and are available in black or white finish. The 102 mm-deep back can offer premium acoustics in a shallow mount profile. The side cable gland means that no additional depth is required for cable entry.

Designed exclusively for Cloud Electronics in the USA by a specialist team of speaker design engineers, the new CS-C Series speakers are extremely installer friendly and are tuned to complement the Cloud range of amplifiers and mixer amplifiers. Built for quality performance Cloud speakers are designed and tested to a superior standard by engineers who care and include a comprehensive 5-Year commercial warranty.

Category:

Description

The Cloud CS-C4V is a 4” coaxial two-way in-ceiling loudspeaker featuring exceptional intelligibility and musical performance. Using premium drivers and electronics, the CS-C4V offers high sensitivity, smooth frequency response, and excellent off-axis performance. The 4.0-inch woofer incorporates a large magnet structure, a treated paper cone, and a butyl rubber surround for lasting, low-distortion performance. The 0.5” tweeter is a silk soft dome to smoothly distribute high-frequency energy. The integral 20 W transformer provides plenty of power even for high SPL applications. The 16-ohm impedance option allows for easy low-impedance daisy chaining.

The CS-C4V incorporates several innovative features that make it a truly remarkable speaker. The ZeroEdge™ grilles are magnetically attached for easy installation and feature a completely seamless transition from grille to ceiling. Round grilles are supplied and are available in black or white finish. The 102 mm-deep back can offer premium acoustics in a shallow mount profile. The side cable gland means that no additional depth is required for cable entry.

Designed exclusively for Cloud Electronics in the USA by a specialist team of speaker design engineers, the new CS-C Series speakers are extremely installer friendly and are tuned to complement the Cloud range of amplifiers and mixer amplifiers. Built for quality performance Cloud speakers are designed and tested to a superior standard by engineers who care and include a comprehensive 5-Year commercial warranty.
