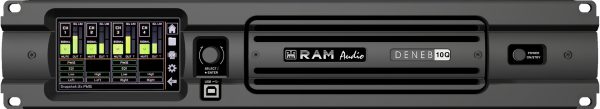

Description
Features:

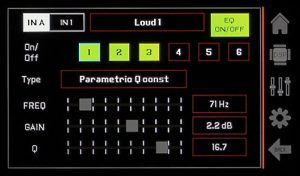

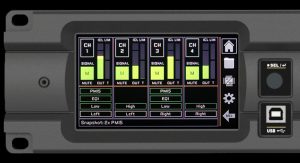

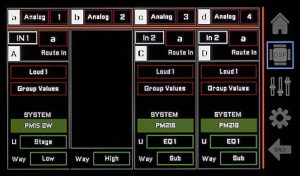

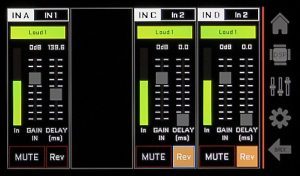

Large IPS display, capacitive touch panel user interface
• High performance 96kHz DSP process.
• Optional DanteTM Networking (AES67) and AES3 Digital inputs

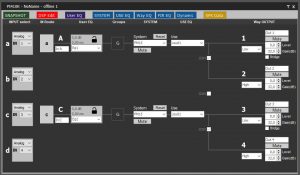

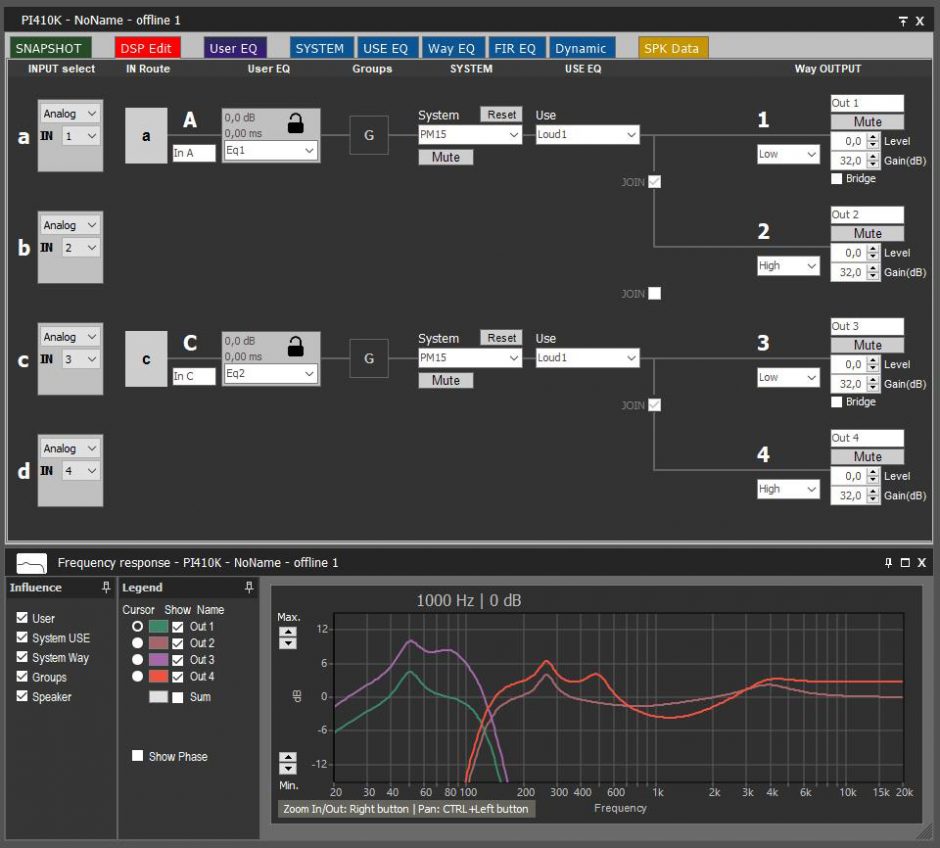

• Two ports Ethernet and USB port for DSP control
• Optional GPIO for third party interface
• Low weight high efficiency class D topology
• Universal power supply with PFC
• Up to 10000 W in 4 channels
• 8, 4 and 2 Ohm low impedance operation
• 100, 70, 50 and 35 V high impedance modes
• Advnaced RAM Audio Power Control Management (PCMTM)
• Phoenix connectors for inputs and outputs
• Up-side-down design to avoid fan dust accumulation
• Removable dust filter foam
• Temperature controlled, front to back cooling fan
