eHMA250
eHMA250 - Image 2
eHMA250 - Image 3

eHMA250

250 WRMS | powered | audio mixer

Mixing Amplifiers | Reference: CEHMA250

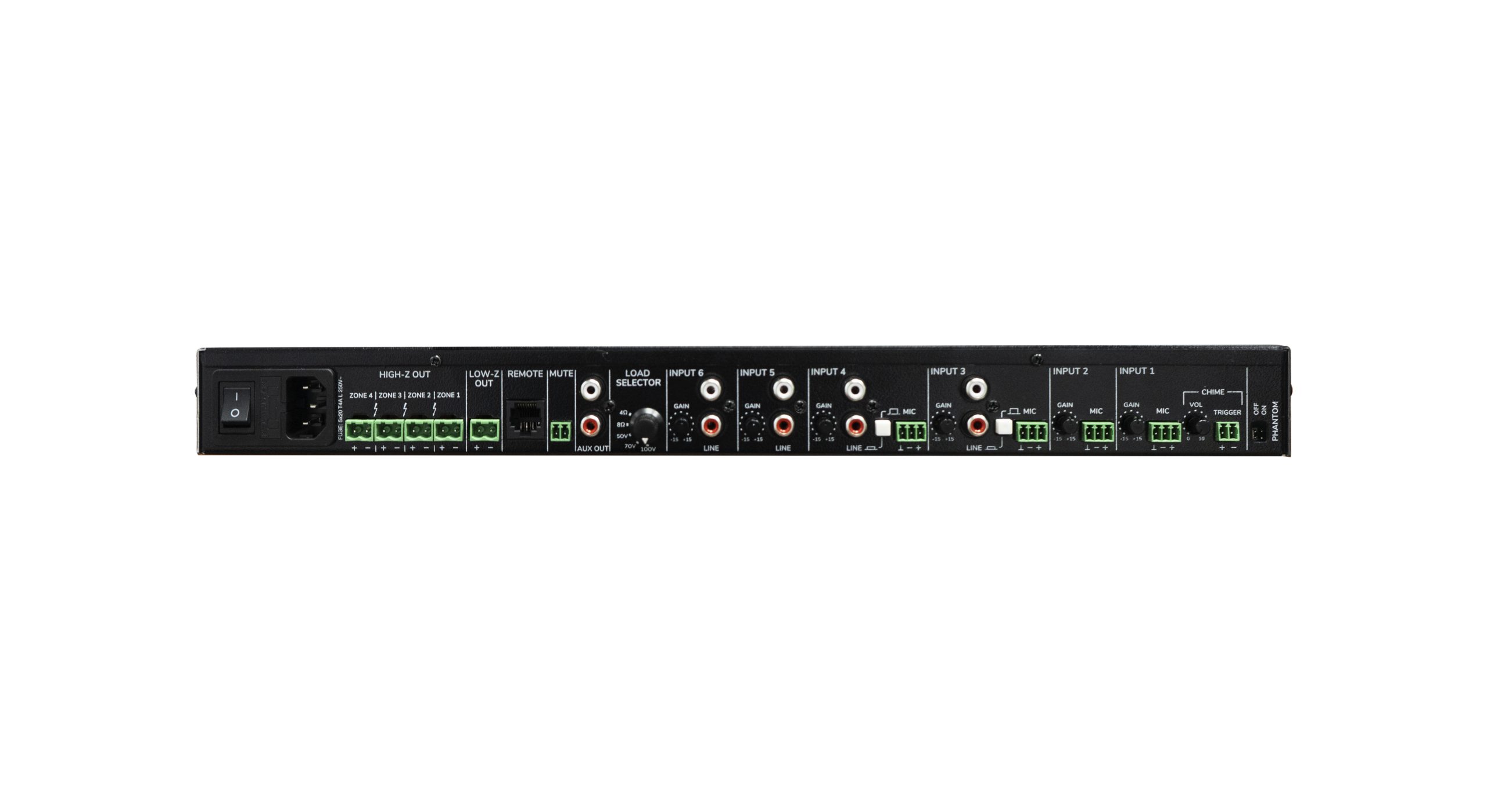

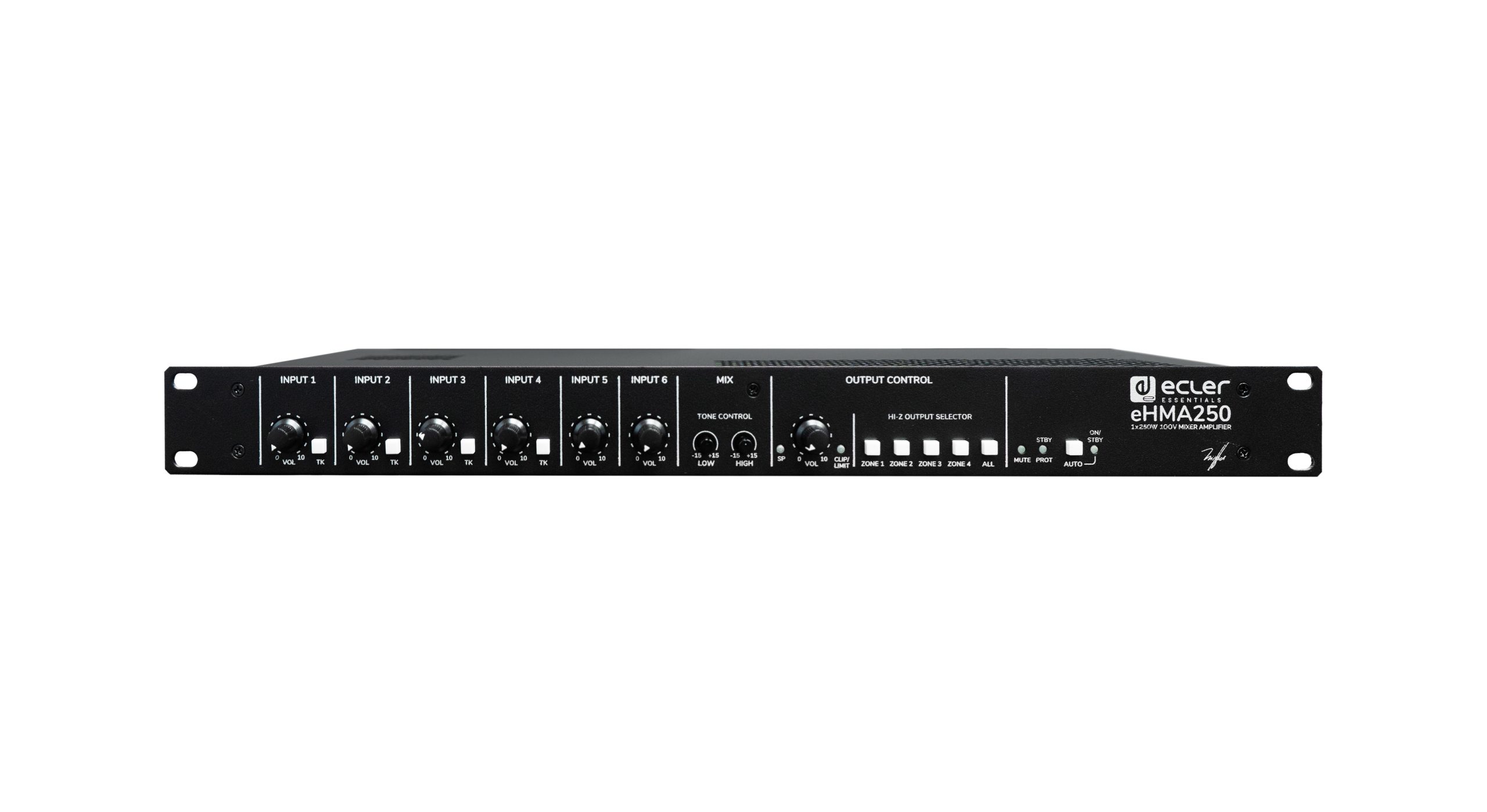

eHMA250 is a self-powered audio mixer including 2 MIC inputs, 2 MIC/LINE ST inputs, 2 LINE ST inputs and one AUX/REC output. Supports both low (4 and 8Ω) and high impedance (50, 70 and 100V) loudspeaker lines, with independent 4-ZONE ON/OFF switches (ZONE 1, ZONE 2, ZONE 3 and ZONE 4), besides a low impedance output and an auxiliary output. It also includes an audio priority system (voice messages, emergencies, etc.) available in 4 inputs and embedded Chime function (compatible with 1 zone paging microphones), 2 band tone control, auto stand-by mode, MUTE port and Remote port (RJ45) for remote volume control, compatible with Ecler WPaVOL.

Category:

Description

Features:

  • 1 x 250W @ 4Ω / 8Ω / 50V / 70V / 100V (Load selector)
  • 4 x ZONE ON/OFF selection switches
  • 2 MIC inputs, including Talkover function (priority)
  • 2 MIC / LINE inputs, including Talkover function (priority)
  • 2 ST LINE input
  • Embedded Chime tone, via dry contact closure
  • 2-band EQ (BASS/TREBLE) for Mix Output
  • Remote port for volume control (WPa series compatible)
  • Auto Stand-by function
  • Remote control port (compatible with WPa series wall panels)
  • 15VDC Phantom Power (external switch)
  • MUTE port to remotely mute the unit from an external device, via dry contact closure
