MIMO4040CDN

40×40 | digital matrix | Dante™ | AES67

Digital Matrixes | Reference: CMIMO4040CDN

  • CONFERENCE firmware only (no STANDARD firmware available)
  • 40×40 audio input / output ports available
  • 40 input channels x 40 output channels digital audio native matrix
  • 8 MIC / LINE analogue audio inputs
  • 8 LINE analogue audio outputs
  • 32 Dante ™/AES67 digital input channels
  • 32 Dante ™/AES67 digital output channels
  • 8 GPI ports
  • 8 GPO ports
  • 2 Dante™ interfaces (primary and secondary), available for configuration of redundant Dante ™ networks
  • 1 Ethernet programming and control interface (EclerNet, UCP, TP-NET and WPNET series control panels)
  • 1 serial control port, RS-232 (TP-NET)
  • Embedded project manager and server of the project’s integrated UCP panels
  • Connection of all peripherals directly via EtherNet network, and without local wiring (remote controls WPNET series, WP22DN wall panel Dante™/AES67 interface, etc.)
Category:

Description

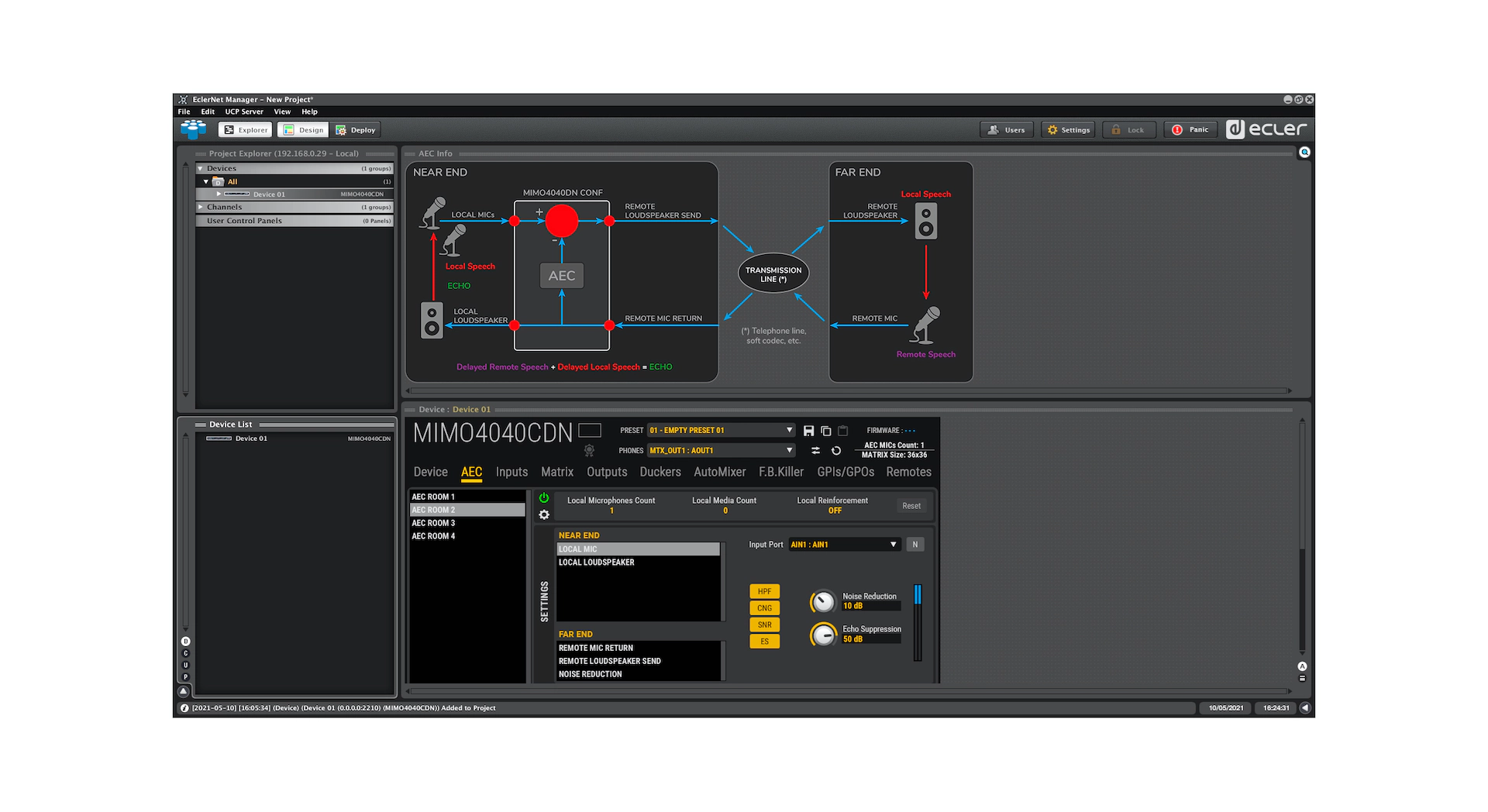

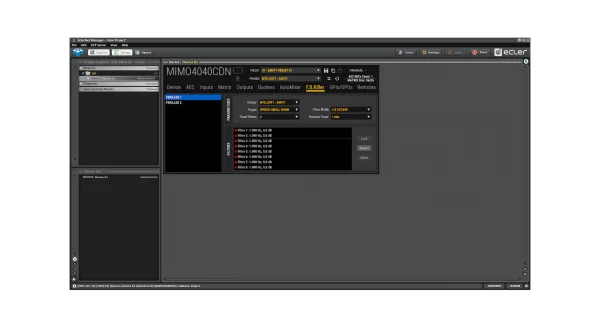

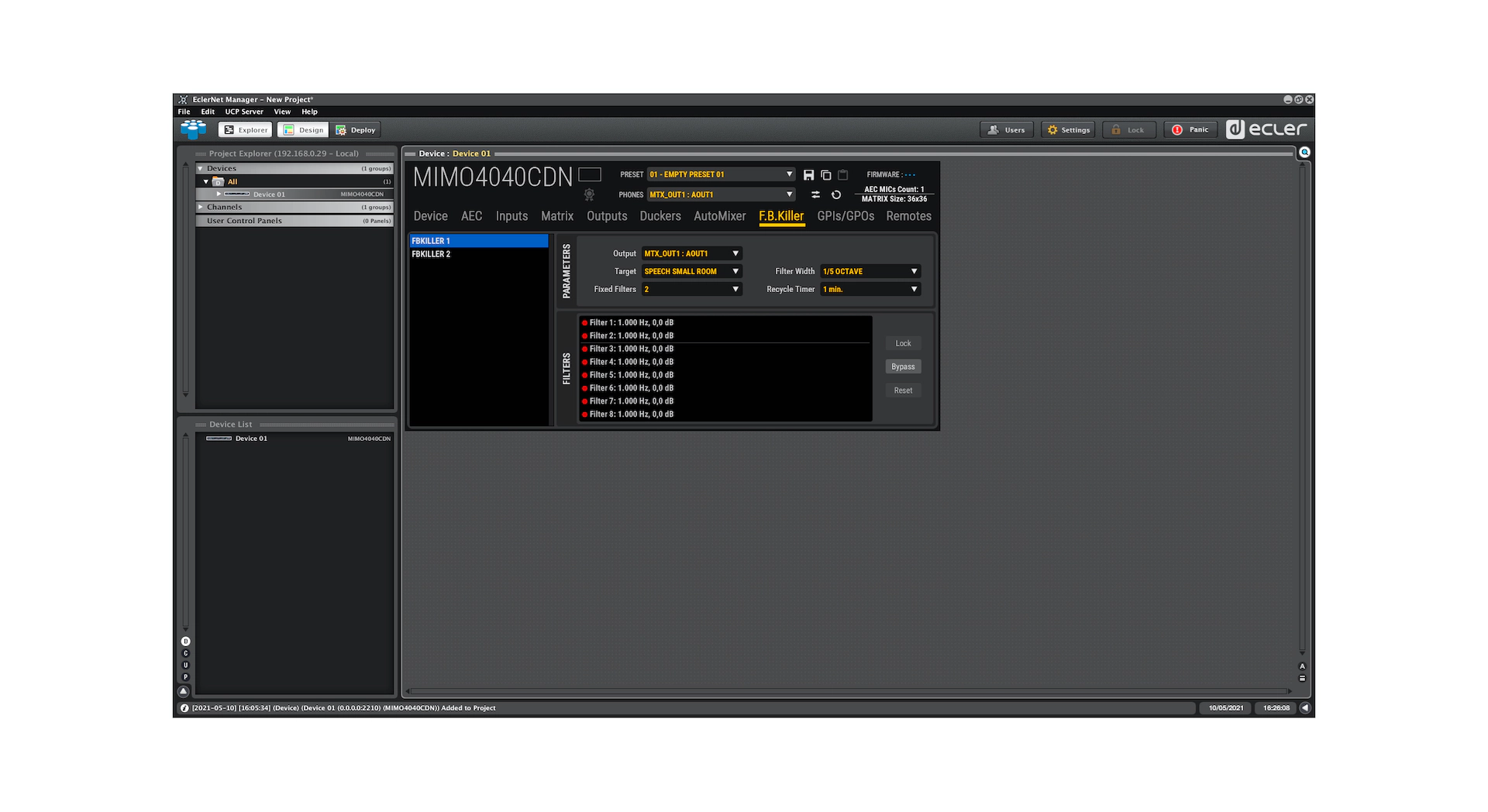

MIMO4040CDN is is a digital audio matrix including a native (full DSP) matrix of 40×40 input and output audio channels total size, specially designed for conference rooms. It includes functions such as AUTOMIXER or FEEDBACK KILLER by default, as well as up to 8 microphone channels with AEC (Acoustic Echo Canceling) processing activated by software licenses.
