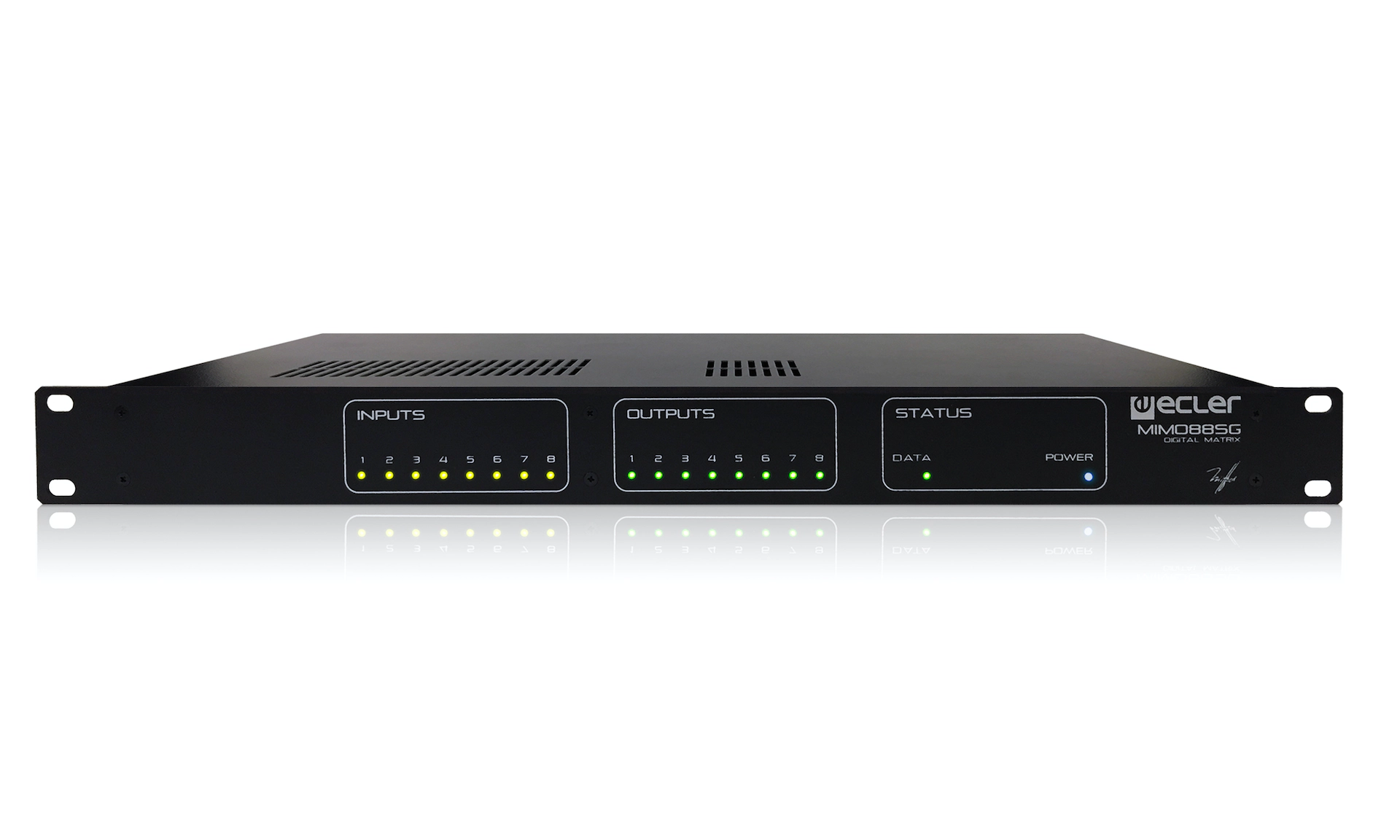

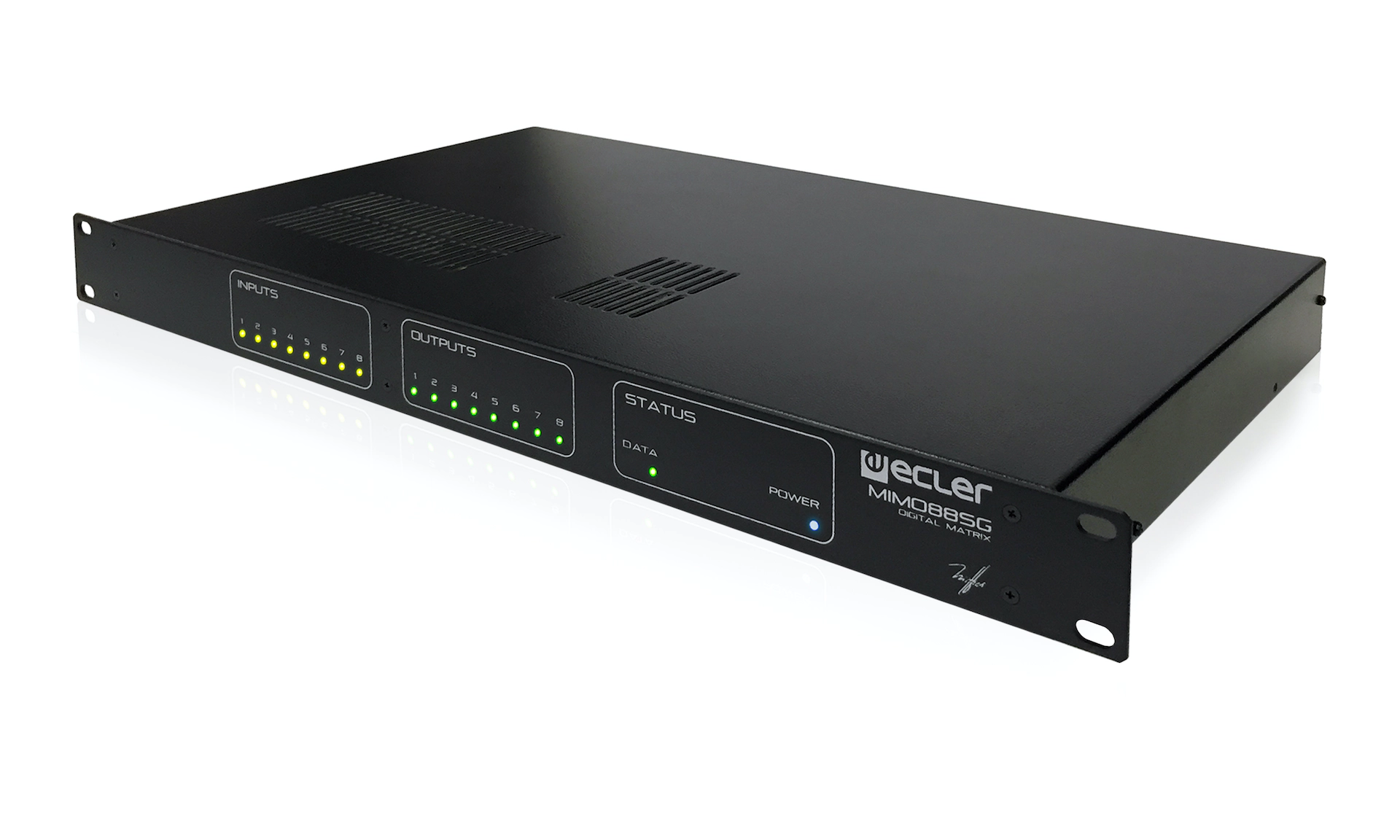

8×8 | digital matrix | DSP

Digital Matrixes | Reference: CMIMO88SG

• 8×8 digital matrix (not expandable)
• Fully programmable and controllable via EclerNet software
• UCP (User Control Panels) remote control system, compatible with WPNETTOUCH and third-partydevices, such as computers, tablets, smartphones, etc.
• TP-NET protocol compatible, for third-party control systems integration
• DSP processing: signal generator, delays, full parametric EQ filters at inputs and outputs,inputs noise gate, level, mute, phase, vu-meters, outputs compressor / limiter, paging and ducking(priority & overriding), virtual and physical paging stations management, presets save &recovery, scheduled events triggering, etc.
• FREQUENCY SHIFTER function to avoid acoustic feedback, available in 4 inputs
• WPNET4KV and WPNET8K compatible control panels (using specific retro-compatible Firmware).
