HZA4-120F
HZA4-120F - Image 2
HZA4-120F - Image 3

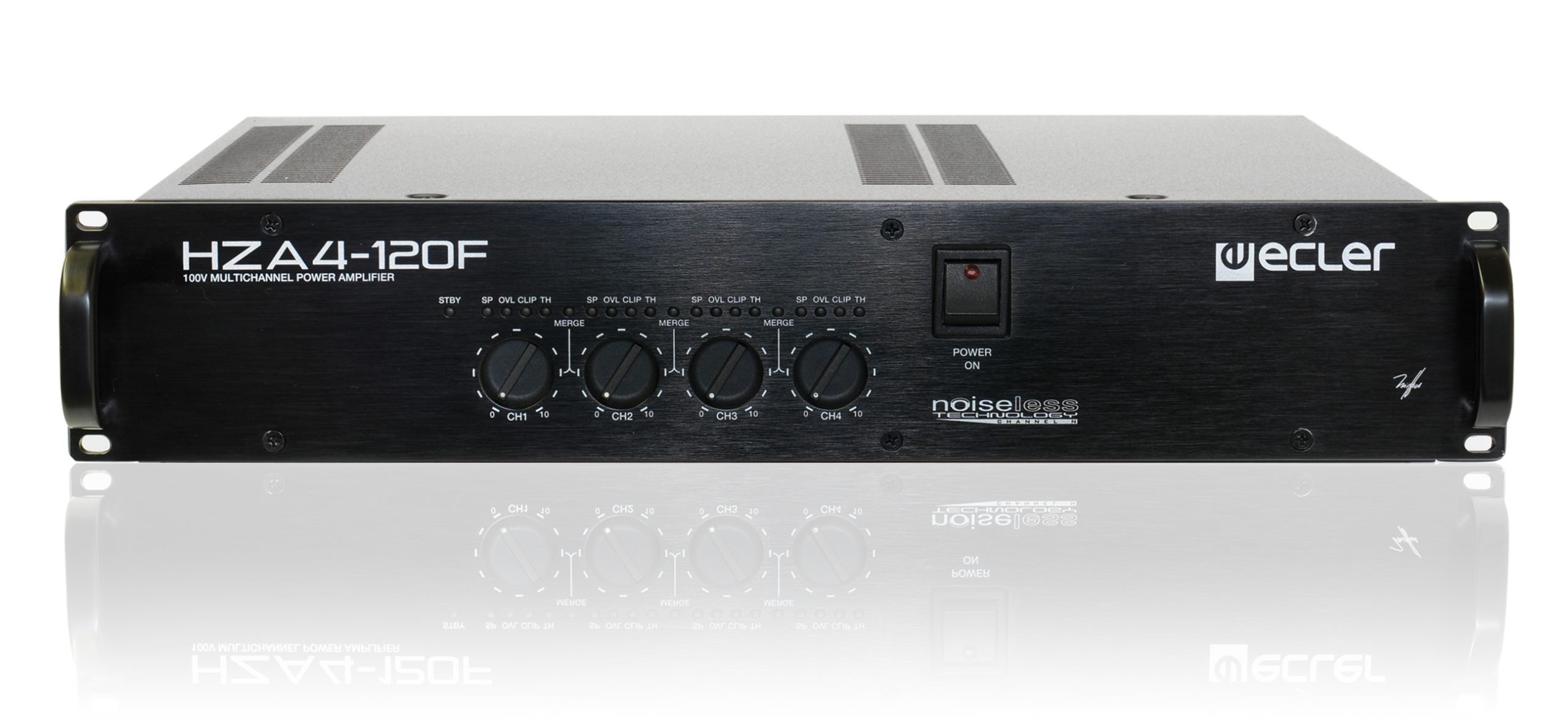

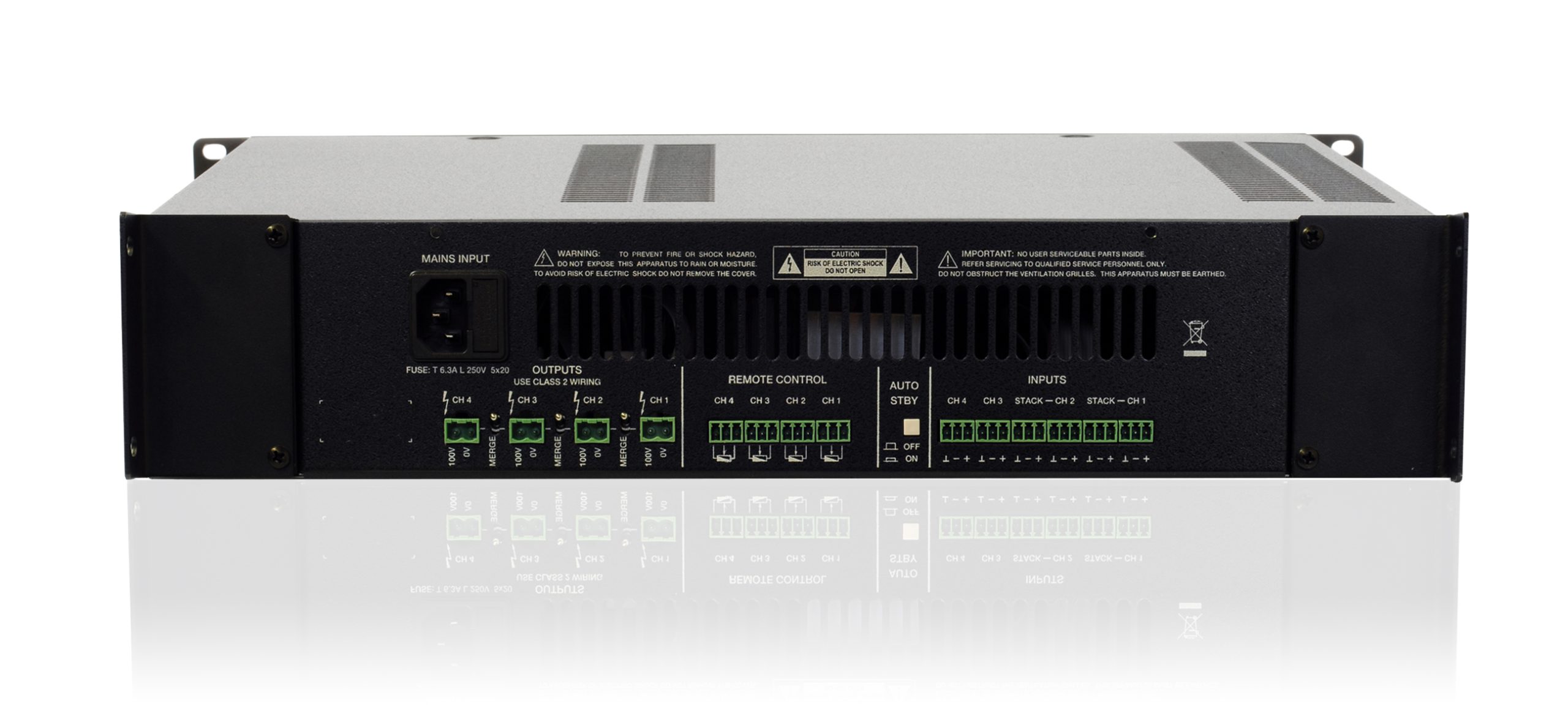

HZA4-120F

4×120 WRMS | Flexi-power | SPM 100 tech | amplifier

High Impedance | Reference: CHZA4120F

HZA4-120F is a four MERGING channel amplifier with direct 4 x 120 WRMS @ 100 V line (high impedance) outputs. It integrates ECLER’s proprietary SPM 100 Technology – Channel N, which allows for 100 V speaker lines connection without using 100 V line transformers at the amplified outputs, as this kind of amplifiers usually do. This fact has many advantages, being the main ones the audio quality improvement (specially in the low-end frequencies) and the convection cooling, 100% silent.

Category:

Description

Features:

  • 4 mono balanced inputs
  • 4 amplified outputs (100V line level)
  • 4 volume remote control ports (0 – 10 VDC)
  • Euroblock connectors
  • SPM 100 amplification Technology – Channel N (no 100 V output transformers used):- Improved frequency response (specially at the low-end)- Convection cooling (100% silent and increased reliability)- Great efficiency- Low weight
  • Auto stand-by function after 2 minutes without audio input signals, with instantaneous auto-recovery
  • Thermal protection
  • Overload protection
  • Anti-clip system
  • Volume control knobs on front panel with protection cap, against undesired manipulation
  • Every 2, 3 or 4 adjacent channels can be merged, adding their ouput power and managing their signal routing and volume control as a single merged channel
