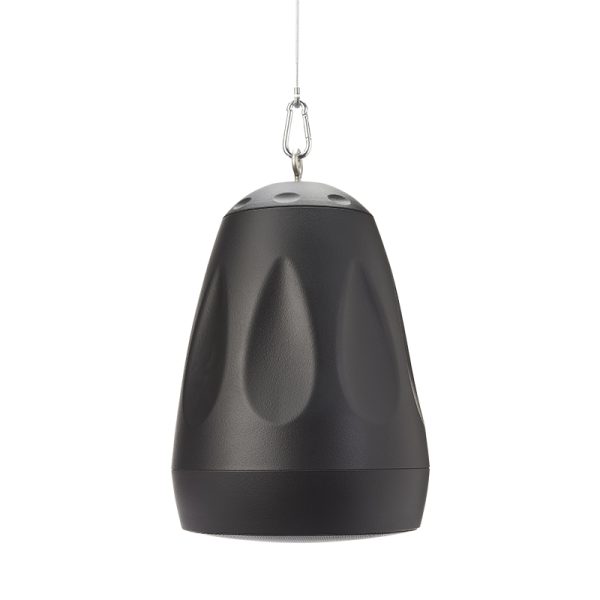

Pendant Speaker CVS-P42TW & CVS-P42TB

High quality coaxial loudspeaker, optimised for music reproduction
Pendant mounting with 360° horizontal coverage
Full set of suspension components with each loudspeaker
Integral multi-tap transformer for 25/70/100 V-line operation
Power selection by rotary switch; low impedance setting included

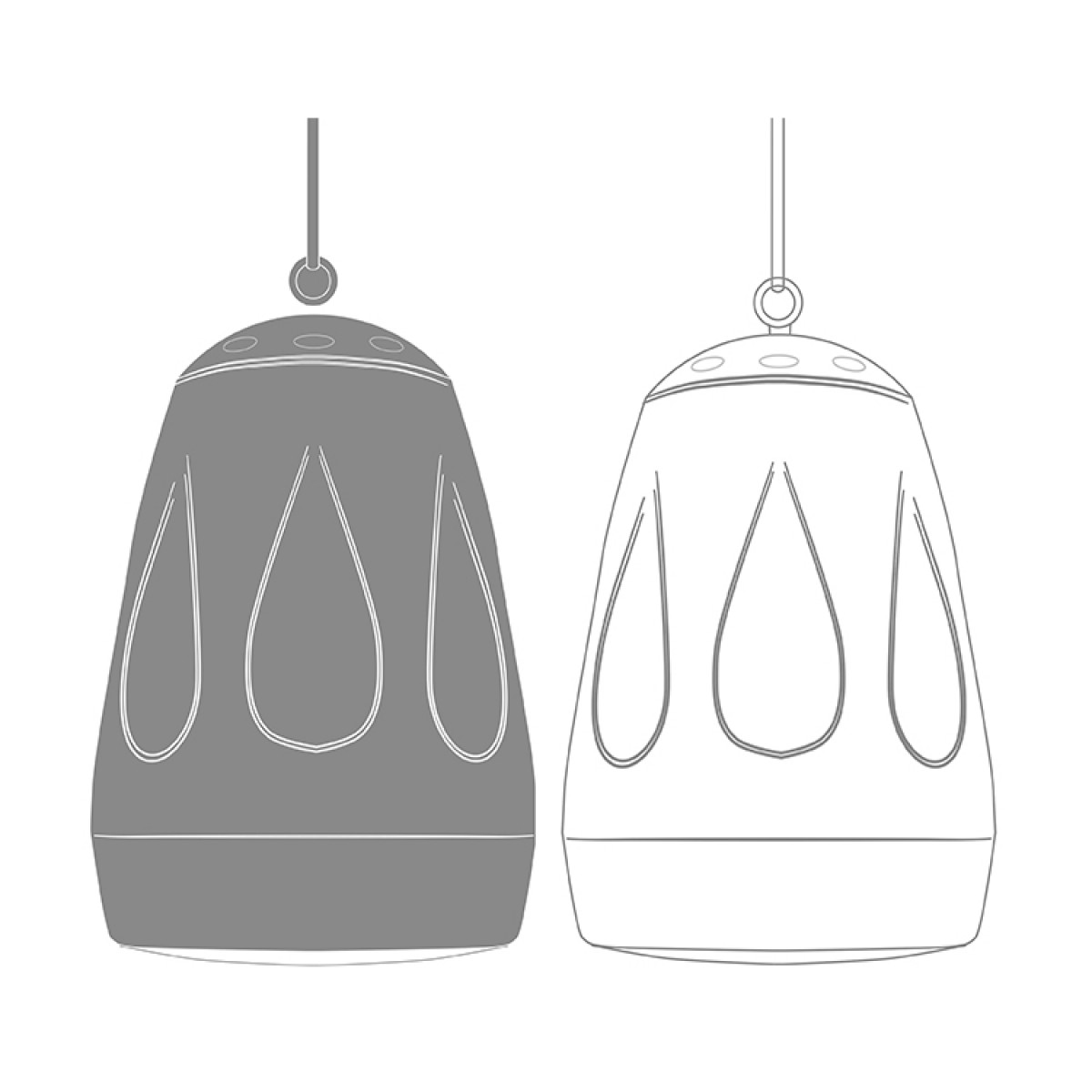

Available in black (CVS-P42TB/CVS-P62TB) or white (CVS-P42TW/CVS-P62TW)
Dimms: Bottom Diameter – 135mm. Top Diameter – 80mm. Height -185mm
Weight: 2.85kg Net, 3.75kg Gross

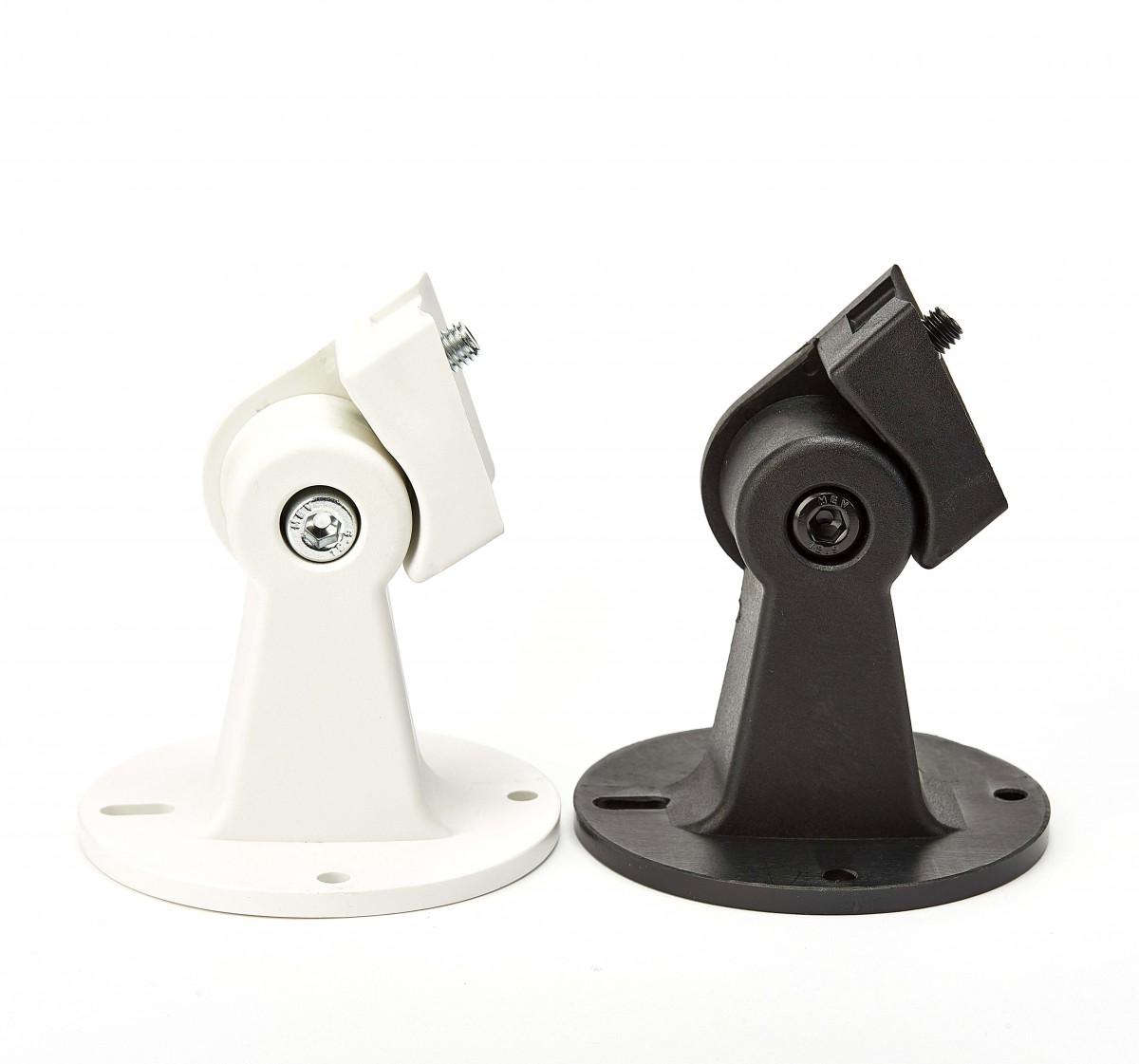

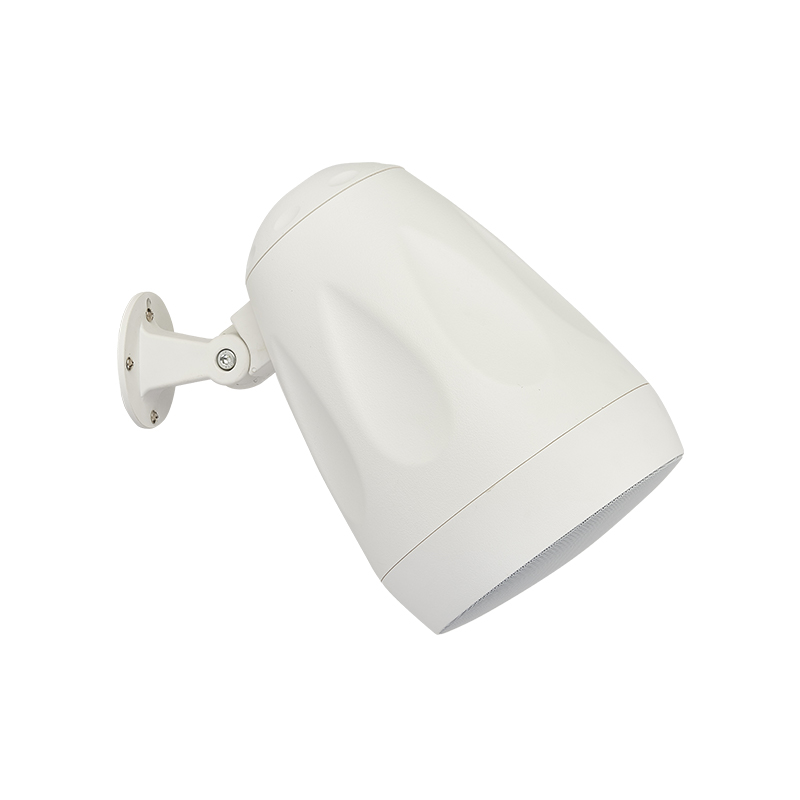

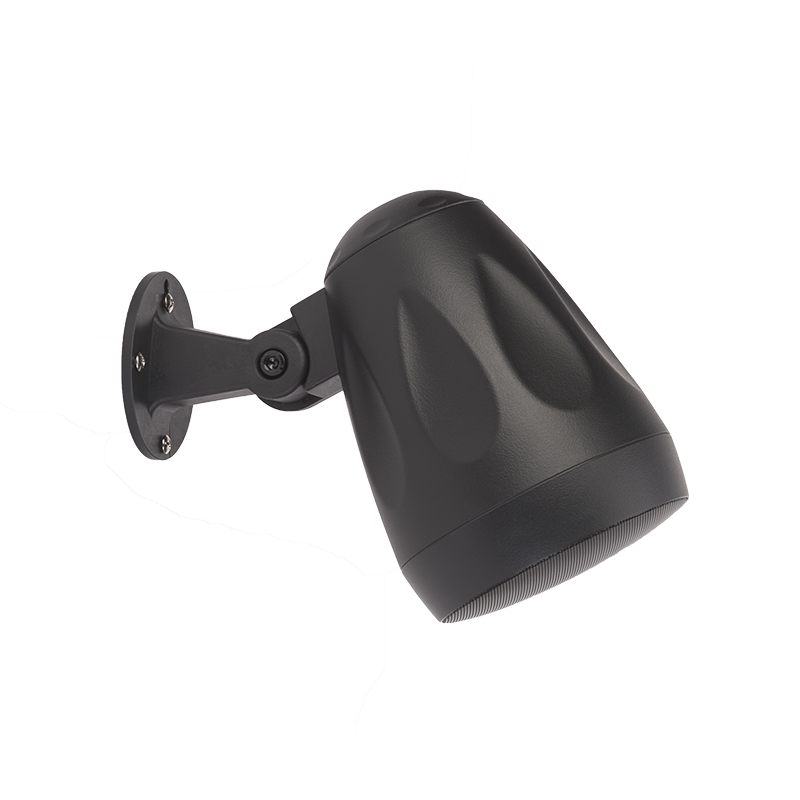

Optional wall mount bracket WB-P46W & WB-P46B
Constructed in Polypropylene with a high impact plastic baffle material, sealed on the bottom face with an Aluminium grille
Selectable 8ohm low-impedance operation

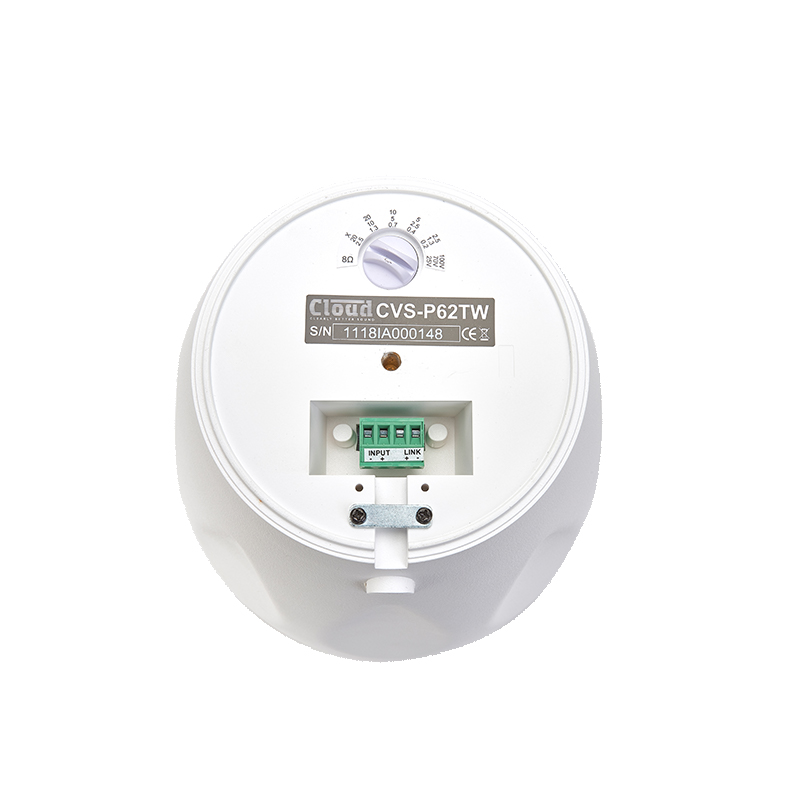

Connections are made via a 4-pin “Euroblock”, mating connection supplier
RAL9011 Black RAL9010 White
Loudspeakers can be repainted in any colour to match décor

Category:

Description

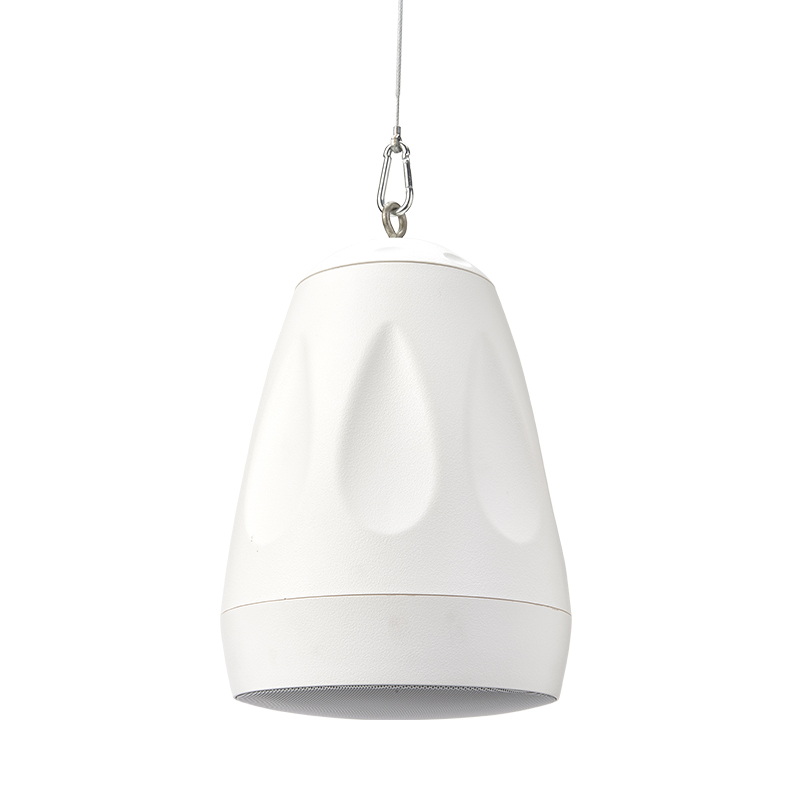

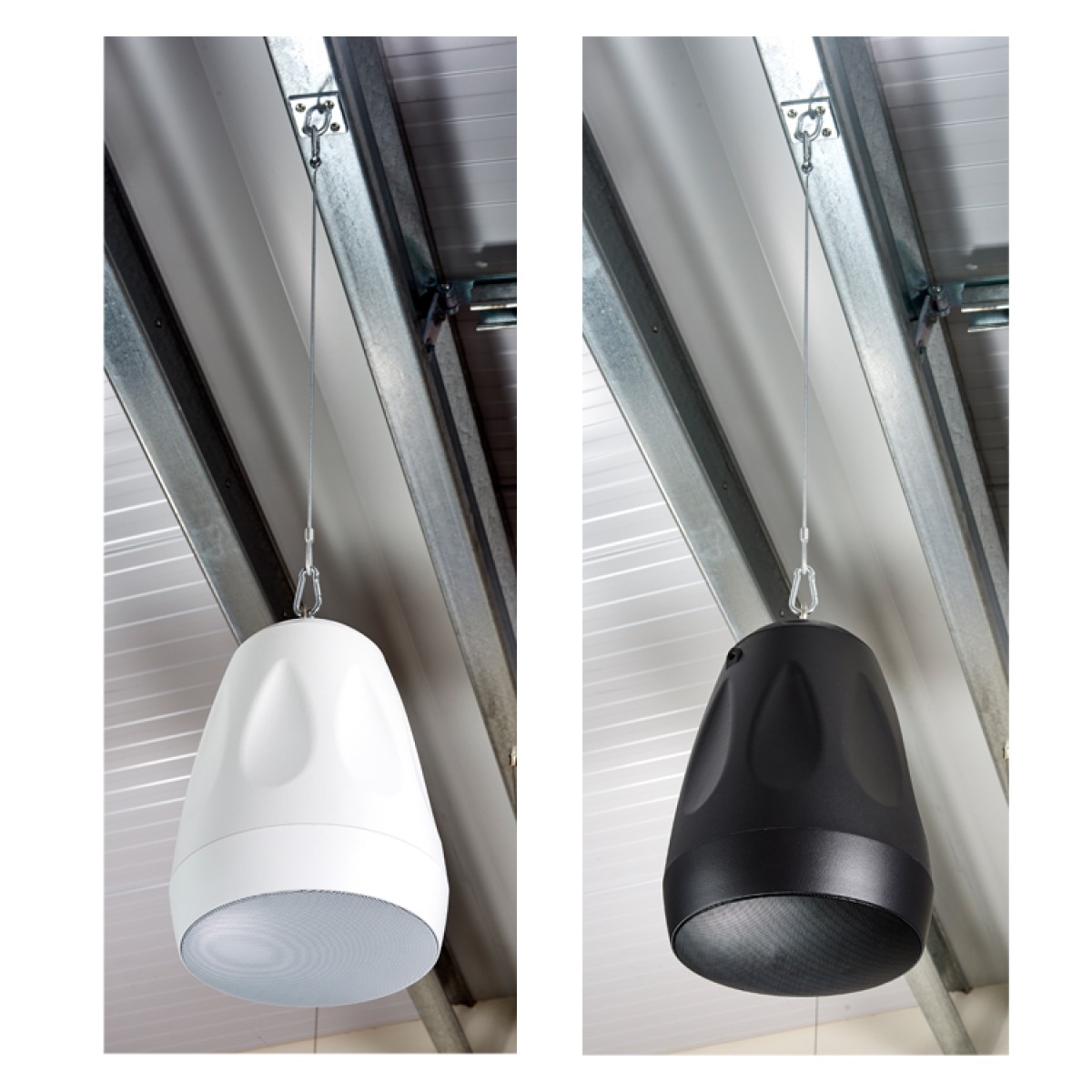

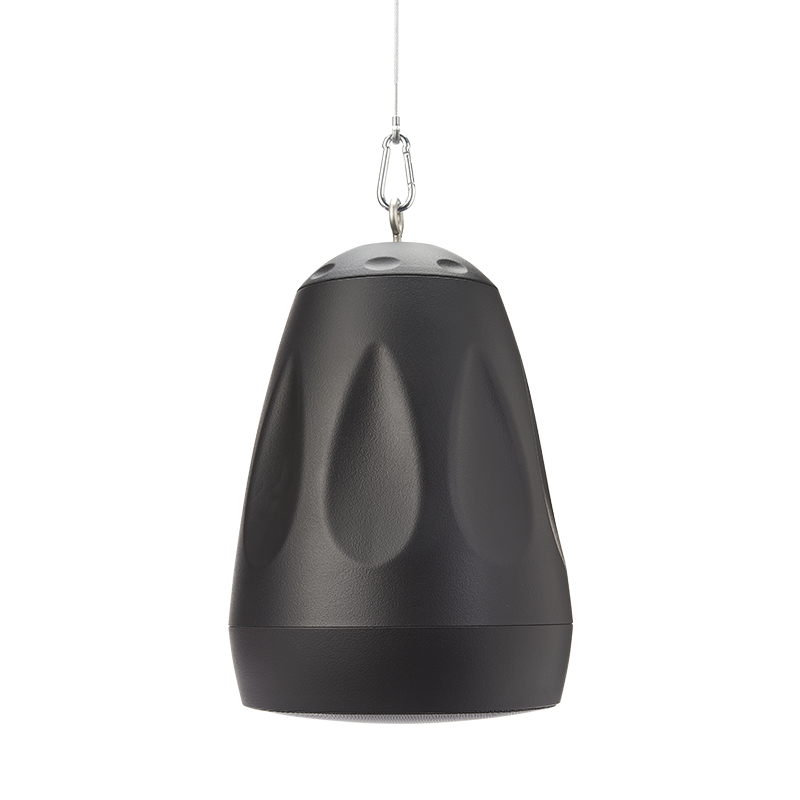

The Cloud CVS Contractor Series pendant models are specifically designed for high quality music reproduction. They are also suitable for speech and announcements and will find application in pubs and bars where a better quality of music audio is desirable. They are designed to be suspended in free space from any convenient point – from a solid ceiling or within an open ceiling structure: a complete set
of suspension components is included with each loudspeaker. Horizontal dispersion is 360°. They include a 25/70/100 V-line transformer with five power tapping’s, plus the option for low-impedance operation (8 ohms). The power setting is selected by a rotary switch on the upper surface of the enclosure. Each loudspeaker is supplied with a separate top cover which protects the connections and power selector switch from dust and debris after installation. The bottom face of the enclosure is sealed by an aluminium grille.
