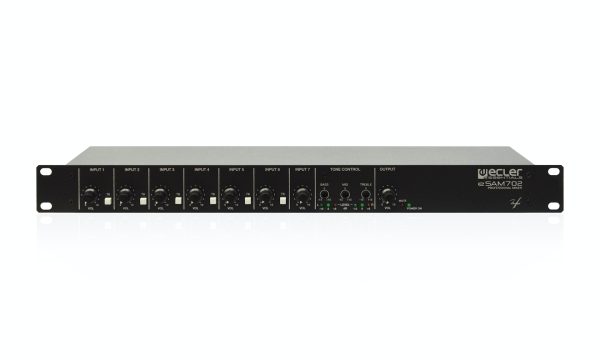

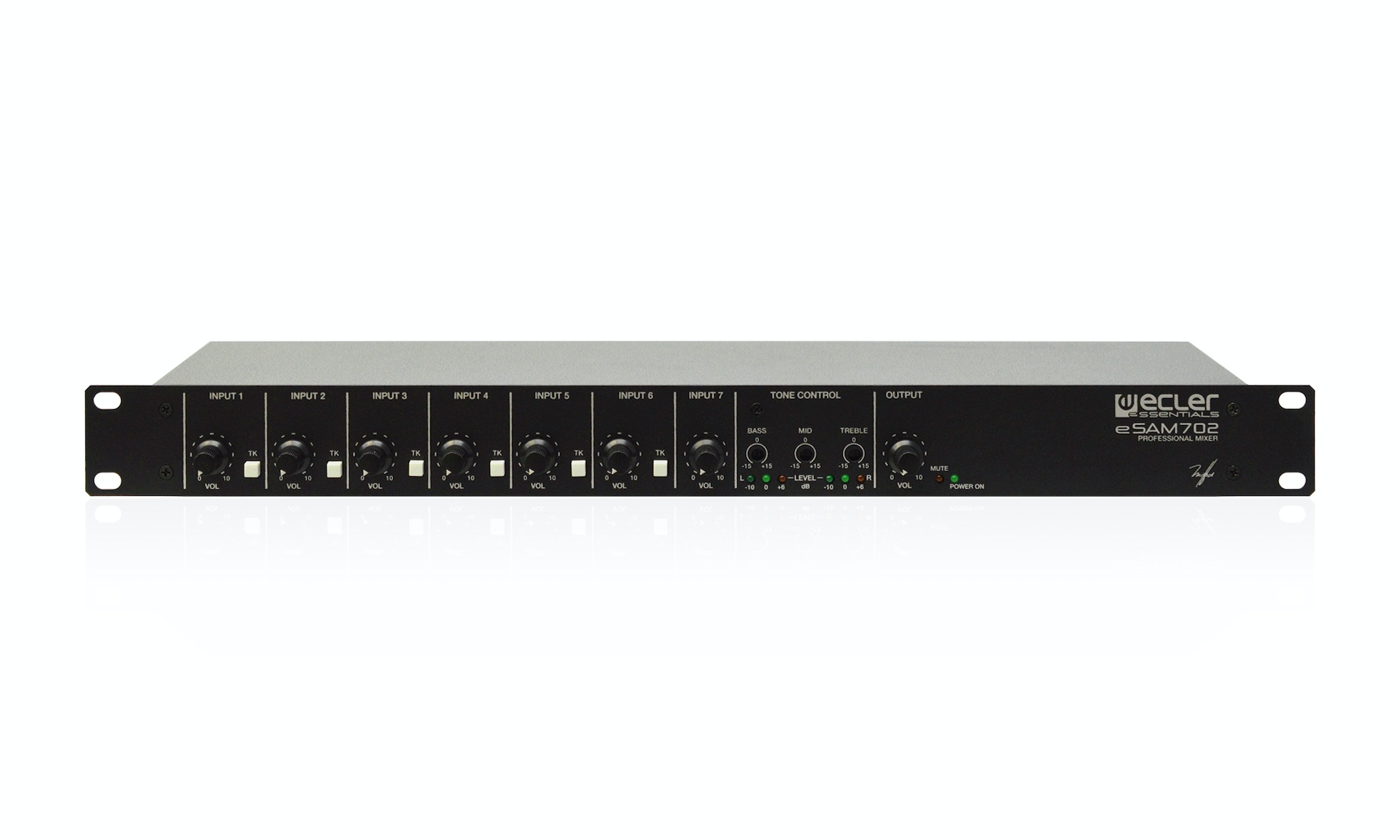

eSAM702

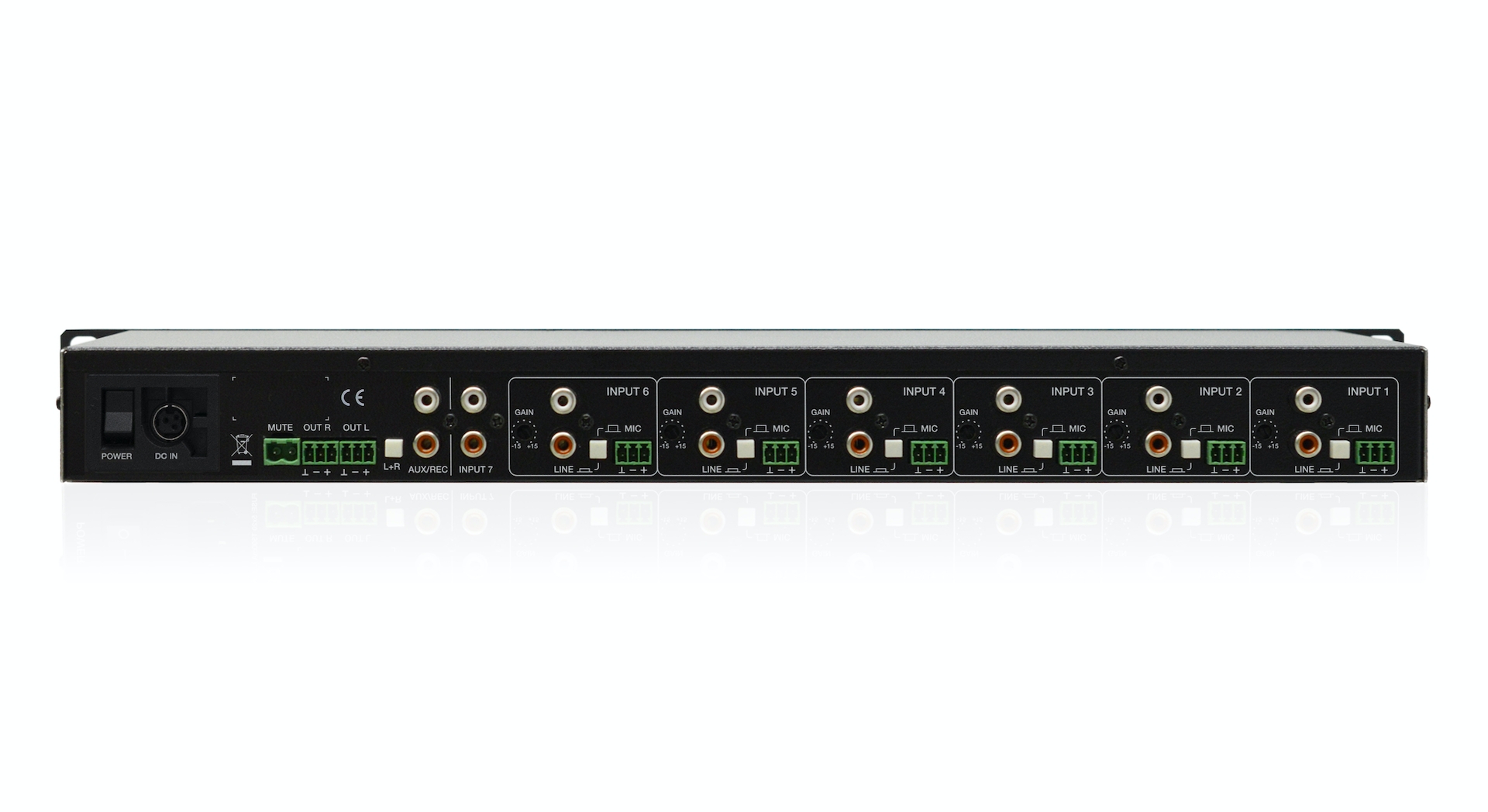

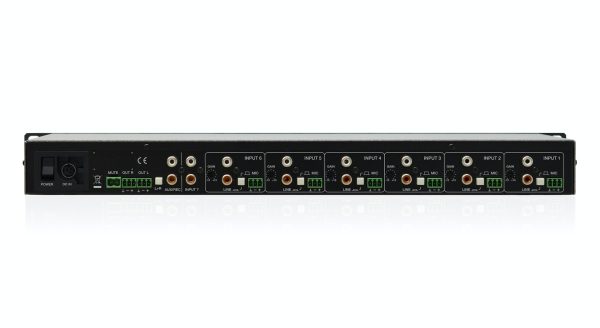

eSAM702 - Image 2

eSAM702

7×2 | 1U rack | analogue mixer

Installation Preamps And Mixers | Reference: CESAM702,CESAM702C



  • 7 input channels, 2 outputs 19” installation mixer
  • 6 MIC/LINE ST inputs
  • 1 LINE ST input
  • 1 main mix output and one AUX/REC additional output
  • 3 band tone control section
  • Talkover (priority) function assignable from each MIC/LINE input over the mix
  • Micro sensitivity level can be adjusted on the back panel
  • +18V Phantom Power available for all MIC inputs
Category:

Description

eSAM702 is an installation audio mixer in standard rack format, featuring 6 MIC/LINE ST inputs, 1 LINE ST input, 1 main mix output and one AUX/REC additional output. It includes a 3 band tone control section, Talkover (priority) function assignable to each MIC/LINE input over the mix bus, ST/MONO mix switch and MUTE port for external dry contact triggering.
